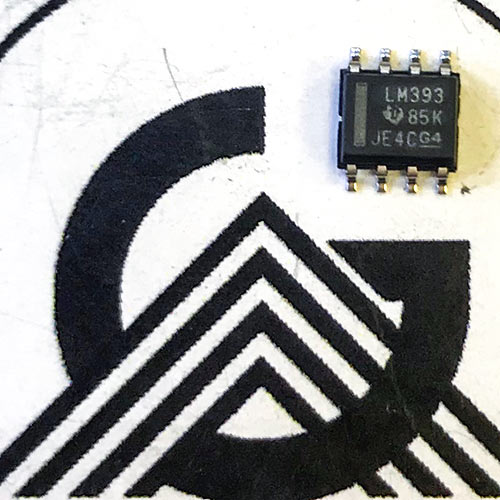

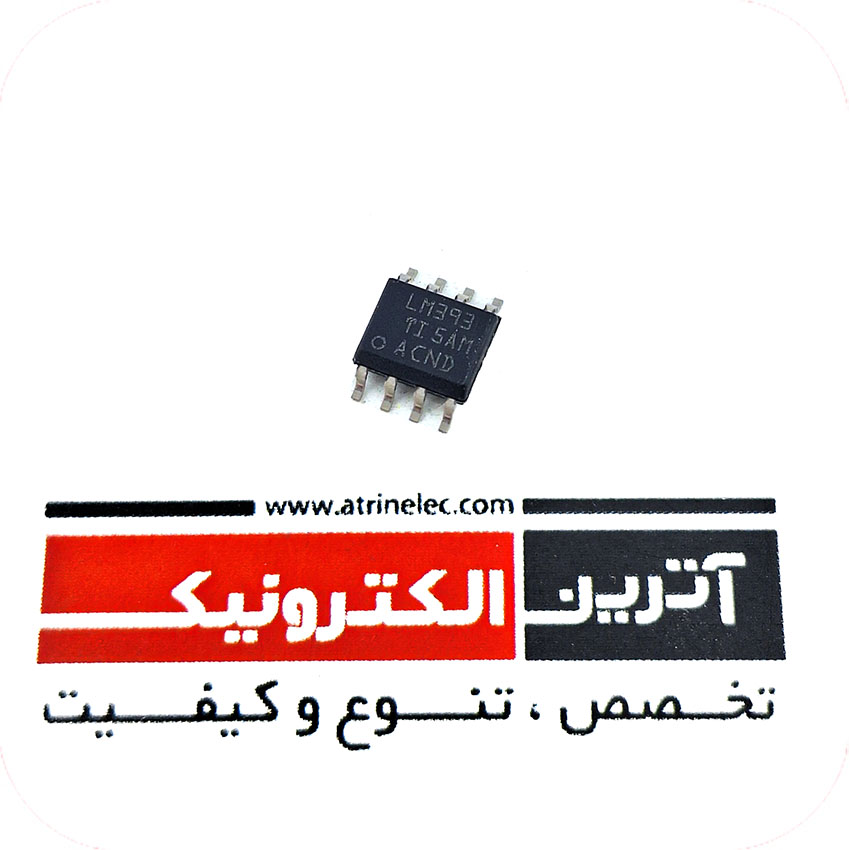

Low Offset Voltage Dual Comparators ,SO-8 آیسی مقایسه کننده دوبل
دریافت کتابخانه( ALITUM DESIGNER )
اس ام دی SMD 8 پین
استفاده در انواع صنایع از جمله بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....
LM393D
مشخصات بیشتر:
Features
• Wide Single−Supply Range: 2.0 Vdc to 36 Vdc
• Split−Supply Range: ±1.0 Vdc to ±18 Vdc
• Very Low Current Drain Independent of Supply Voltage: 0.4 mA
• Low Input Bias Current: 25 nA
• Low Input Offset Current: 5.0 nA
• Low Input Offset Voltage: 5.0 mV (max) LM293/393
• Input Common Mode Range to Ground Level
• Differential Input Voltage Range Equal to Power Supply Voltage
• Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS
Logic Levels
• ESD Clamps on the Inputs Increase the Ruggedness of the Device
without Affecting Performance
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
SOIC-8
SO-8
