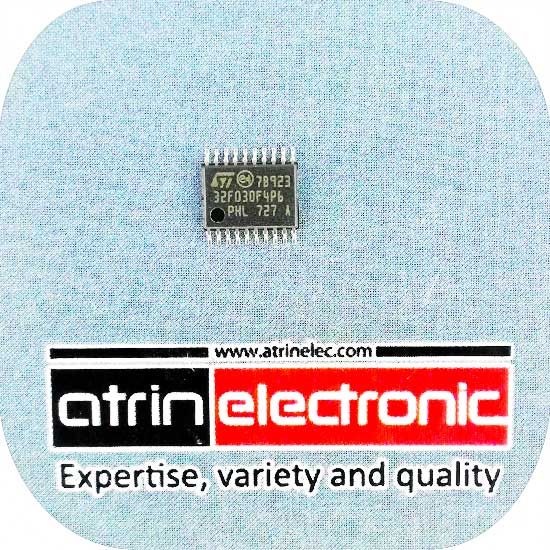

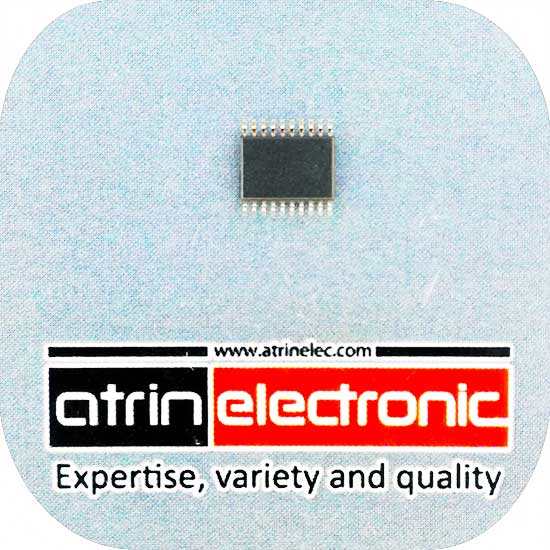

STM32F030F4P6 اریجینال-کیفیت بالا

STM32F030F4P6
میکروکنترلر 32 بیتی با فلش 16K و رم 4K با فرکانس 48 مگاهرتز-Mainstream ARM Cortex-M0 Value line MCU with 16 Kbytes Flash, 48 MHz CPU
تعداد
تخفیف
قیمت
+1
4.0 %
220,000 تومان 211,200 تومان
+20
6.4 %
214,500 تومان 205,900 تومان
+100
8.8 %
209,000 تومان 200,600 تومان
برند: STMICROELECTRONICS پکیج: TSSOP20 وزن: 1.0g ابعاد: 0.105x0.66x0.45 دیتاشیت

نقد و بررسی اجمالی

میکروکنترلر 32 بیتی با فلش 16K و رم 4K با فرکانس 48 مگاهرتز-Mainstream ARM Cortex-M0 Value line MCU with 16 Kbytes Flash, 48 MHz CPU



  دریافت دیتا شیت

The STM32F030x4/x6/x8/xC microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os.
All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs and up to six USARTs), one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.
The STM32F030x4/x6/x8/xC microcontrollers operate in the -40 to +85 °C temperature range from a 2.4 to 3.6V power supply.
A comprehensive set of power-saving modes allows the design of low-power applications.
The STM32F030x4/x6/x8/xC microcontrollers include devices in four different packages ranging from 20 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included.
The description below provides an overview of the complete range of STM32F030x4/x6/x8/xC peripherals proposed.
These features make the STM32F030x4/x6/x8/xC microcontrollers suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

به جرات میتوان گفت محبوب ترین میکروکنترلر ها در بین خانوادهARM سری STM32 است که دارای طیف مختلف از لحاظ سایز - کارایی و قیمت هستند.

این میکرو کنترلر ها در ایران محبوبیت زیادی پیدا کرده است و همچنین مشاهده شده جدید ترین سیستم ها با این میکرو کنترلر در صنعت ساخته شده و از لحاظ کارایی و مقاومت در برابر نویز بسیار عالی عمل کرده است و برنامه نویسان به سرعت از خانواده های قبلی به این خانواده مهاجرت کرده اند.

این ای سی از بخش های متفاوت TIMER,ADC,DAC,PWM,COUNTERو... تشکیل شده است که بسته به نیاز خود می توانید نمونه های مختلف را انتخاب کنید.

توصیه مااینست برای کار با این ای سی حتما از نرم افزار STM32CUBEMX(دانلود)  استفاده کنید که آموزش کار با ان به صورت تصویری توسط گروه آترین الک(کلیک کنید) تهیه شده است.

امکانات این ای سی :

Core: ARM®32-bit Cortex®-M0 CPU, frequency up to 48 MHz
Memories
- 16 to 256 Kbytes of Flash memory
- 4 to 32 Kbytes of SRAM with HW parity
CRC calculation unit
Reset and power management
- Digital & I/Os supply: VDD= 2.4 V to 3.6 V - Analog supply:
VDDA= VDDto 3.6 V - Power-on/Power down reset (POR/PDR)
- Low power modes: Sleep, Stop, Standby
Clock management
- 4 to 32 MHz crystal oscillator -
32 kHz oscillator for RTC with calibration
- Internal 8 MHz RC with x6 PLL option
- Internal 40 kHz RC oscillator
Up to 55 fast I/Os
- All mappable on external interrupt vectors
- Up to 55 I/Os with 5V tolerant capability
5-channel DMA controller
One 12-bit, 1.0 μs ADC (up to 16 channels)
- Conversion range: 0 to 3.6 V
- Separate analog supply: 2.4 V to 3.6 V
Calendar RTC with alarm and periodic wakeup from Stop/Standby
11 timers - One 16-bit advanced-control timer for six-channel PWM output
- Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding
- Independent and system watchdog timers
- SysTick timer
Communication interfaces - Up to two I2C interfaces
- Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
- Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames
Serial wire debug (SWD)
All packages ECOPACK®2

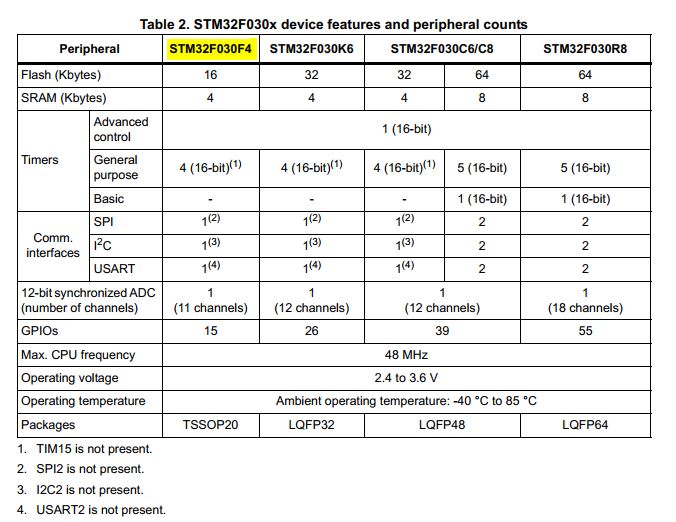

مشخصات بیشتر:

مشخصات/پارامتر

توضیحات/تعداد

NAME

STM32F030F4P6

MCU Family

STM32

MCU Series

STM32F0

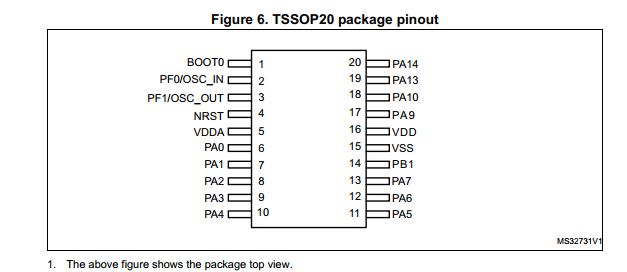

Package

TSSOP20

Architecture

ARM Cortex-M0

Operating Temperaure

85+~ 40-

PIN

20

Digital I/O

15

Power supply

2.4-3.6V

(Frequency (max

48MHZ

Flash memory

16KB

SRAM

4KB

ADC

 11Channels
(12Bit)

DAC

-

DMA

5

SPI

1

I2C

1

I2S

-

UART+USART

1

CAN

-

 CAN FD

-

USB

-

SDIO

-

Parallel interfaces

-

Additional Serial Interfaces

-

Display controller

-

TIMER

5
(16Bit)

PWM

6
(16Bit)

Watchdog

2

RTC

YES
