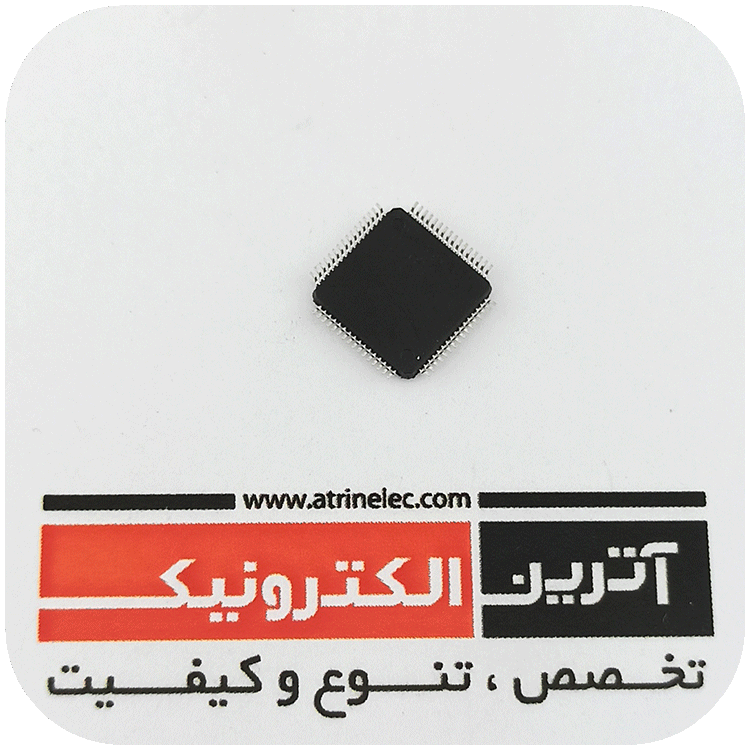

STM32F103RBT6 اریجینال-کیفیت بالا

STM32F103RBT6
میکروکنترلر 32 بیتی با فلش 128K و رم 20K با فرکانس 72 مگاهرتز-Mainstream Performance line, ARM Cortex-M3 MCU with 128 Kbytes Flash, 72 MHz CPU, motor control, USB and CAN
تعداد
تخفیف
قیمت
+1
96,900 تومان
+20
3.0 %
94,000 تومان
+100
5.9 %
91,200 تومان
برند: STMICROELECTRONICS پکیج: LQFP64 وزن: 1.0g ابعاد: 0.16x2.2x2.2 دیتاشیت

نقد و بررسی اجمالی

میکروکنترلر 32 بیتی با فلش 128K و رم 20K با فرکانس 72 مگاهرتز-Mainstream Performance line, ARM Cortex-M3 MCU with 128 Kbytes Flash, 72 MHz CPU, motor control, USB and CAN



  دریافت دیتا شیت

دریافت  کتابخانه( ALITUM  DESIGNER )

The STM32F103xx medium-density performance line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.
The devices operate from a 2.0 to 3.6 V power supply.
They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range.
A comprehensive set of power-saving mode allows the design of low-power applications. The STM32F103xx medium-density performance line family includes devices in six different package types: from 36 pins to 100 pins.
Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.
These features make the STM32F103xx medium-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

به جرات میتوان گفت محبوب ترین میکروکنترلر ها در بین خانوادهARM سری STM32 است که دارای طیف مختلف از لحاظ سایز - کارایی و قیمت هستند.

این میکرو کنترلر ها در ایران محبوبیت زیادی پیدا کرده است و همچنین مشاهده شده جدید ترین سیستم ها با این میکرو کنترلر در صنعت ساخته شده و از لحاظ کارایی و مقاومت در برابر نویز بسیار عالی عمل کرده است و برنامه نویسان به سرعت از خانواده های قبلی به این خانواده مهاجرت کرده اند.

این ای سی از بخش های متفاوت TIMER,ADC,DAC,PWM,COUNTERو... تشکیل شده است که بسته به نیاز خود می توانید نمونه های مختلف را انتخاب کنید.

توصیه مااینست برای کار با این ای سی حتما از نرم افزار STM32CUBEMX(دانلود)  استفاده کنید که آموزش کار با ان به صورت تصویری توسط گروه آترین الک(کلیک کنید) تهیه شده است.

امکانات این ای سی :

ARM®32-bit Cortex®-M3 CPU Core
- 72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access
- Single-cycle multiplication and hardware division
Memories
- 64 or 128 Kbytes of Flash memory
- 20 Kbytes of SRAM
Clock, reset and supply management
- 2.0 to 3.6 V application supply and I/Os
- POR, PDR, and programmable voltage detector (PVD)
- 4-to-16 MHz crystal oscillator - Internal 8 MHz factory-trimmed RC
- Internal 40 kHz RC - PLL for CPU clock
- 32 kHz oscillator for RTC with calibration
Low-power - Sleep, Stop and Standby modes
- VBAT supply for RTC and backup registers
2 x 12-bit, 1 μs A/D converters (up to 16 channels)
- Conversion range: 0 to 3.6 V - Dual
-sample and hold capability
- Temperature sensor
DMA - 7-channel DMA controller
- Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
Up to 80 fast I/O ports
Debug mode
7 timers - Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
- 16-bit, motor control PWM timer with dead-time generation and emergency stop
- 2 watchdog timers (Independent and Window)
- SysTick timer 24-bit downcounter
Up to 9 communication interfaces - Up to 2 x I2C interfaces (SMBus/PMBus)
- Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
- Up to 2 SPIs (18 Mbit/s) - CAN interface (2.0B Active)
- USB 2.0 full-speed interface
CRC calculation unit, 96-bit unique ID
Packages are ECOPACK®

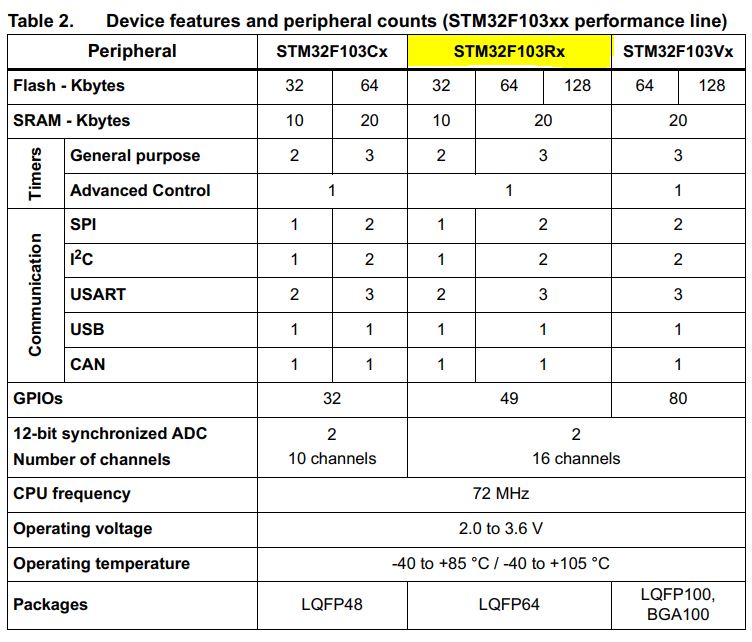

مشخصات بیشتر:

مشخصات/پارامتر

توضیحات/تعداد

NAME

STM32F103RBT6

MCU Family

STM32

MCU Series

STM32F1

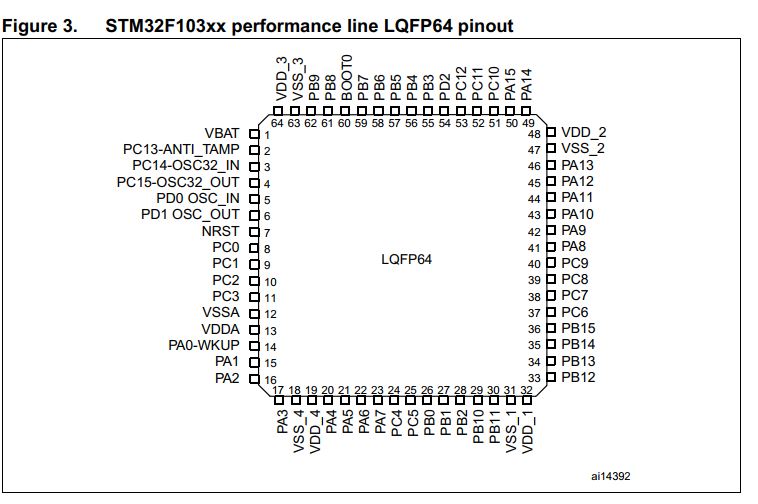

Package

LQFP64

Architecture

ARM Cortex-M3

Operating Temperaure

85+~ 40-

PIN

64

Digital I/O

51

Power supply

2-3.6V

(Frequency (max

72MHZ

Flash memory

128KB

SRAM

20KB

ADC

 16Channels
(12Bit)

DAC

-

DMA

12

SPI

2

I2C

2

I2S

-

UART+USART

3

CAN

1

 CAN FD

-

USB

1

SDIO

-

Parallel interfaces

-

Additional Serial Interfaces

-

Display controller

-

TIMER

4
(16Bit)

PWM

1
(16Bit)

Watchdog

2

RTC

YES
