درایور 8 کانال دارلینگتون خروجی 500 میلی آمپر 8ch Darlington Sink Driver,DIP-18
8ch Darlington Sink Driver
درایور 8 کانال دارلینگتون خروجی 500 میلی آمپر
دریافت کتابخانه( ALITUM DESIGNER )
استفاده در انواع صنایع از جمله بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....
مشخصات بیشتر:
The ULN2803APG / AFWG Series are high-voltage,
high-current darlington drivers comprised of eight NPN
darlington pairs.
All units feature integral clamp diodes for switching inductive
loads.
Applications include relay, hammer, lamp and display (LED)
drivers.
The suffix (G) appended to the part number represents a Lead
(Pb)-Free product.
Features
z Output current (single output)
500 mA (Max.)
z High sustaining voltage output
50 V (Min.)
z Output clamp diodes
z Inputs compatible with various types of logic.

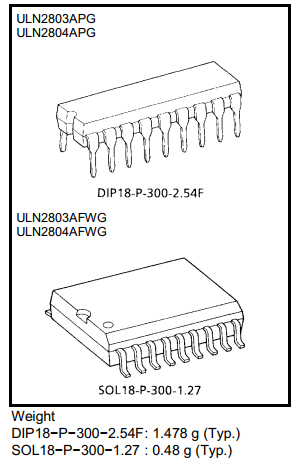

z Package Type-APG : DIP-18pin
z Package Type-AFWG : SOL-18pin
