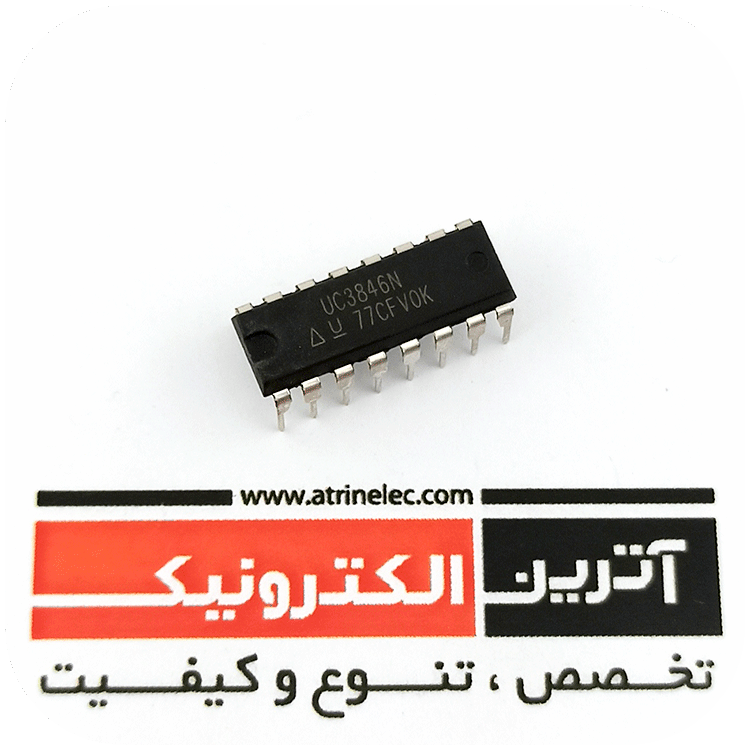

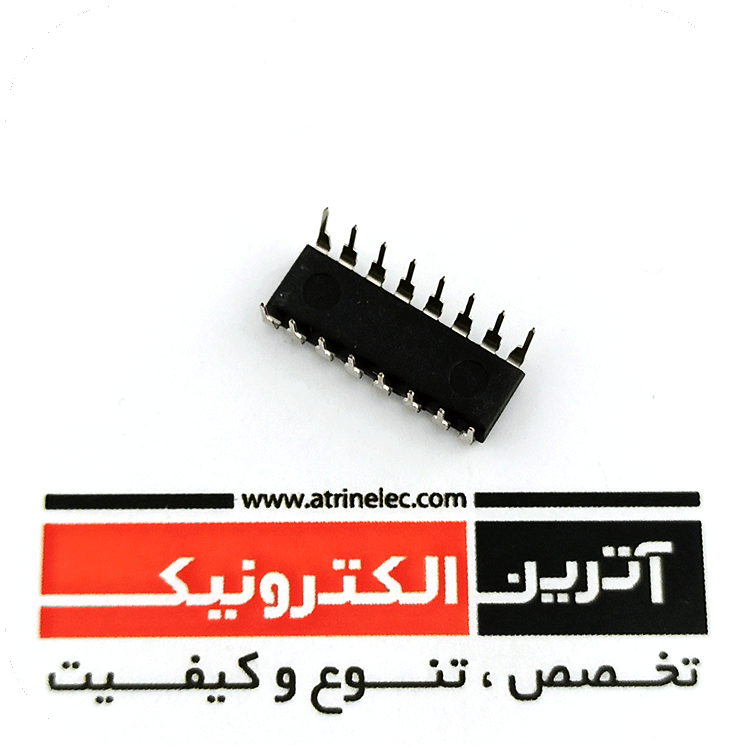

Current Mode PWM Controller,DIP-16 درایور PWM اریجینال تگزاز امریکایی 500 میلی آمپر خروجی 500 کیلوهرتز
Current Mode PWM Controller,DIP-16
دریافت دیتا شیت
دریافت کتابخانه( ALITUM DESIGNER )
درایور PWM اریجینال تگزاز امریکایی 500 میلی آمپر خروجی 500 کیلوهرتز
استفاده در انواع صنایع از جمله درایورو پالس ساز انواع بردهای درایو دستگاه های جوش و برش و اینورتری
مدارات عمومی
درایورهای دور موتور و .....
مشخصات بیشتر:
• Automatic Feed Forward Compensation
• Programmable Pulse-by-Pulse Current
Limiting
• Automatic Symmetry Correction in Push-pull
Configuration
• Enhanced Load Response Characteristics
• Parallel Operation Capability for Modular
Power Systems
• Differential Current Sense Amplifier with
Wide Common Mode Range
• Double Pulse Suppression
• 500mA (Peak) Totem-pole Outputs
• ±1% Bandgap Reference
• Under-voltage Lockout
• Soft Start Capability
• Shutdown Terminal
• 500kHZ Operation
Allegro MicroSystems, Inc.
مشخصات بیشتر:
Supply Voltage (Pin 15) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +40V
Collector Supply Voltage (Pin 13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +40V
Output Current, Source or Sink (Pins 11, 14) . . . . . . . . . . . . . . . . . . . . . . . 500mA
Analog Inputs (Pins 3, 4, 5, 6, 16). . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to +VIN
Reference Output Current (Pin 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -30mA
Sync Output Current (Pin 10). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -5mA
Error Amplifier Output Current (Pin 7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -5mA
Soft Start Sink Current (Pin 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA
Oscillator Charging Current (Pin 9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mA
Power Dissipation at TA=25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000mW
Power Dissipation at TC=25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2000mW
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Lead Temperature (soldering, 10 seconds) . . . . . . . . . . . . . . . . . . . . . . . . +300°C
ABSOLUTE MAXIMUM RATINGS (Note 1)
Note 1. All voltages are with respect to Ground, Pin 13. Currents are positive into,
negative out of the speficied terminal. Consult Packaging Section of Databook for
thermal limitations and considerations of packages. Pin numbers refer to DIL and

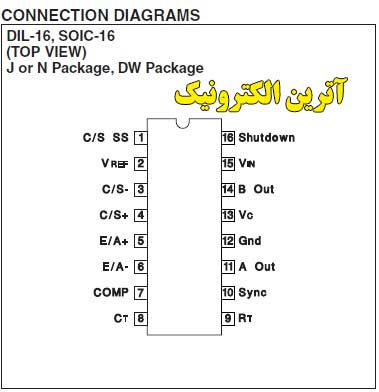

دیاگرام :
