مقاومت متغیر دیجیتالی استفاده در ماینر- /Single Channel 256 Tap Digital Potentiometer (POT)
Features
400 kHz I2C Compatible Interface
256 Position Linear Taper Potentiometer
End-to-End Resistance = 50 k / 100 k
TCR = 100 ppm/C (typical)
Standby Current = 2 A (max)
Typical Wiper Resistance = 70 @ 3.3 V
Operating Voltage = 2.5 V to 5.5 V
6 Registers 8-bit Non-volatile EEPROM
2,000,000 Data Write Stores
100 Year Data Retention
8-lead MSOP Package
NiPdAu Plating
These Devices are Pb-Free and are RoHS Compliant

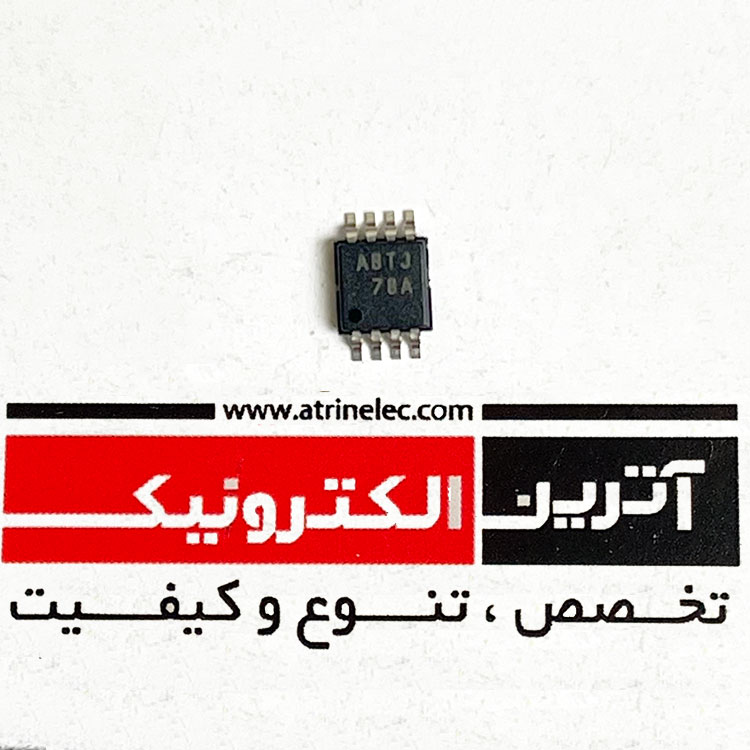

CAT5140-ABTJ-70A
CAT5140ZI−50−GT3
CAT5140ZI−00−GT3
