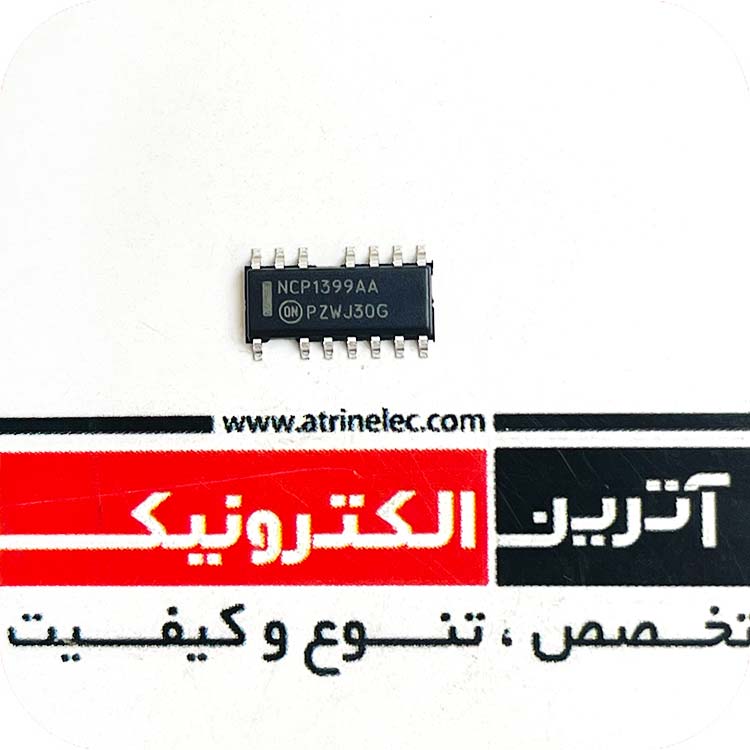

آیسی کنترل جریان با کارایی بسیار بالا و ولتاژ بالا Current Mode Resonant Controller, with Integrated High-Voltage Drivers, High Performance
ویژگی ها:
استفاده در انواع صنایع از جمله آداپتور و باتری شارژر ها
اینورترهای خورشیدی و جوش
تامین نیروی تجهیزات پزشکی
و ....
Typical Applications
• Adapters and Offline Battery Chargers
• Flat Panel Display Power Converters
• Computing Power Supplies
• Industrial and Medical Power Sources
Features
• High−Frequency Operation from 20 kHz up to 750 kHz
• Current Mode Control Scheme
• Automatic Dead−time with Maximum Dead−time Clamp
• Dedicated Startup Sequence for Fast Resonant Tank Stabilization
• Skip Mode Operation for Improved Light Load Efficiency
• Off−mode Operation for Extremely Low No−load Consumption
• Latched or Auto−Recovery Overload Protection
• Latched or Auto−Recovery Output Short Circuit Protection
• Latched Input for Severe Fault Conditions, e.g. OVP or OTP
• Out of Resonance Switching Protection
• Open Feedback Loop Protection
• Precise Brown−Out Protection
• PFC Stage Operation Control According to Load Conditions
• Startup Current Source with Extremely Low Leakage Current
• Dynamic Self−Supply (DSS) Operation in Off−mode or Fault Modes
• Pin to Adjacent Pin / Open Pin Fail Safe
• These are Pb−Free Devices
