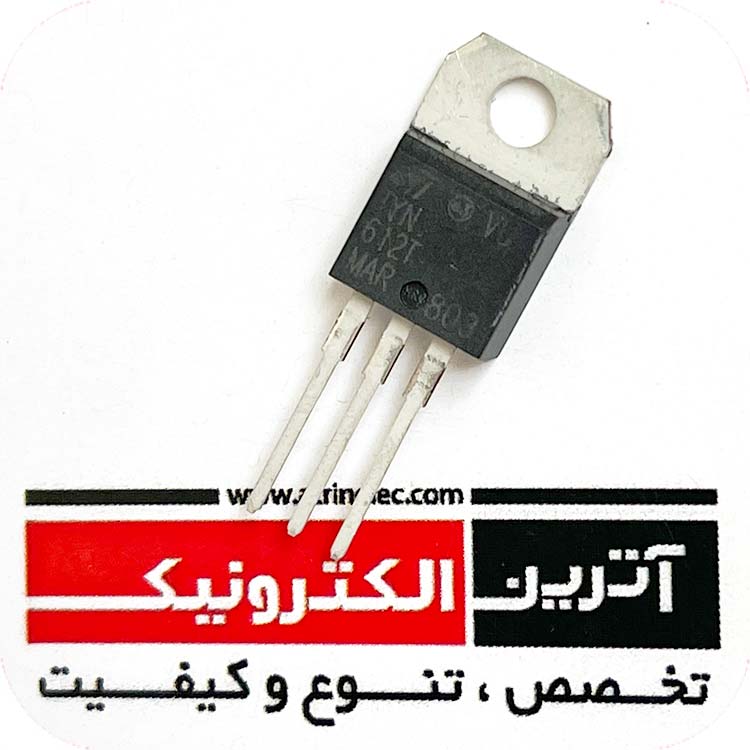

SCR گیت تحریک 600 ولت 12 آمپر SCRs 12 Amp 600 Volt
اس سی آر استاندار 12 آمپر 600 ولت
استفاده در اکثر صنایع

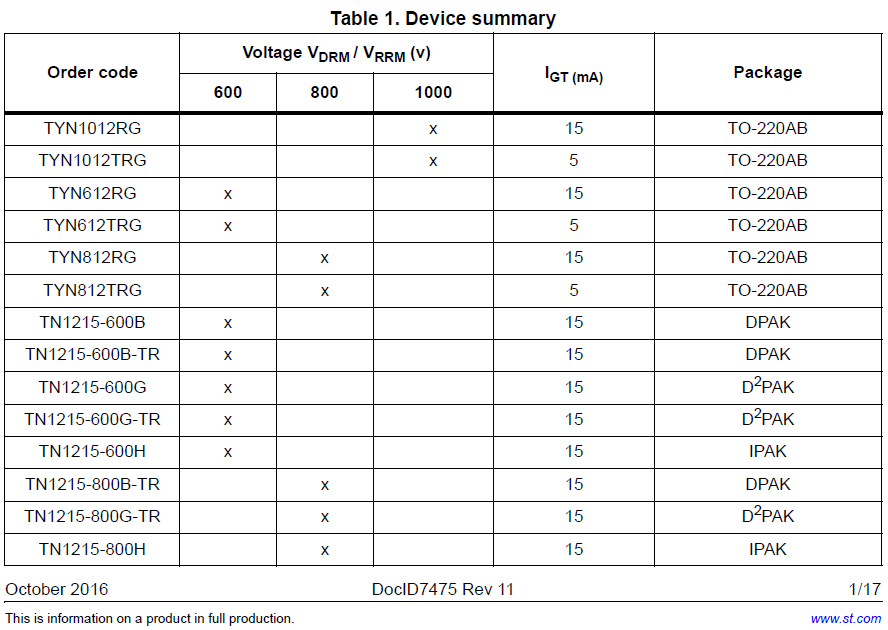

Features
On-state RMS current, IT(RMS) 12 A
Repetitive peak off-state voltage, VDRM and
VRRM 600 V, 800 V and 1000 V
Triggering gate current, IGT 5 mA or 15 mA
Description
The standard 12 A SCR series is suitable to fit all
modes of control, found in applications such as
overvoltage crowbar protection, motor control
circuits in power tools and kitchen aids, inrush
current limiting circuits, capacitive discharge
ignition and voltage regulation circuits.
Available in through-hole or surface-mount
packages, they provide an optimized performance
in a limited space.
STMicroelectronics | ||
SCRs | ||
RoHS: | Details | |
TYN612 | ||
145 A | ||
600 V | ||
5 uA | ||
1.6 V | ||
5 V | ||
1.3 V | ||
5 mA | ||
- 40 C | ||
+ 125 C | ||
Through Hole | ||
TO-220 | ||
Tube | ||
Brand: | STMicroelectronics | |
Current Rating: | 12 A | |
Height: | 9.15 mm | |
Holding Current Ih Max: | 15 mA | |
Length: | 10.4 mm | |
Non Repetitive On-State Current: | 125 A | |
Product Type: | SCRs | |
1000 | ||
Subcategory: | Thyristors | |
Type: | 12 A SCRs | |
Width: | 4.6 mm | |
Unit Weight: | 0.081130 oz |
