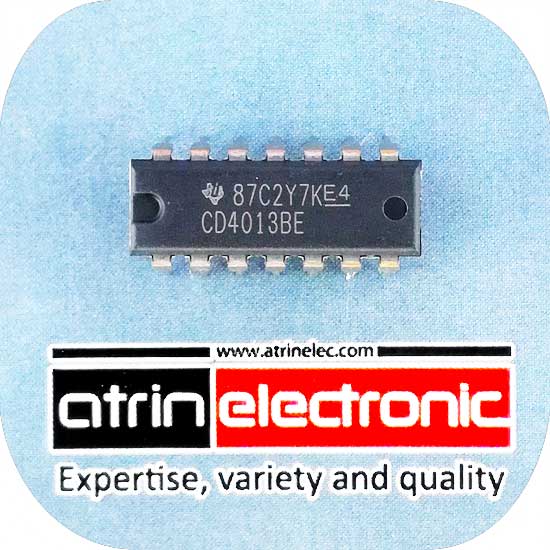

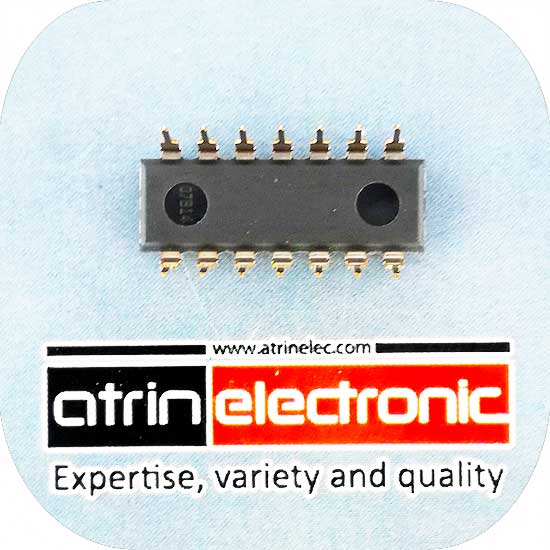

ای سی دارای دو فلیپ فلاپ دی Dual D-Type Flip-Flop
General Description
The CD4013B dual D-type flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement mode transistors. Each flip-flop has independent data, set, reset, and clock inputs and “Q” and “Q” outputs. These devices can be used for shift register applications, and by connecting “Q” output to the data input, for counter and toggle applications. The logic level present at the “D” input is transferred to the Q output during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line respectively
Features
Wide supply voltage range: 3.0V to 15V
(High noise immunity: 0.45 VDD (typ
Low power TTL: fan out of 2 driving 74L compatibility: or 1 driving 74LS
Applications
Automotive
Data terminals
Instrumentation
Medical electronics
Alarm system
Industrial electronics
Remote metering
Computers
