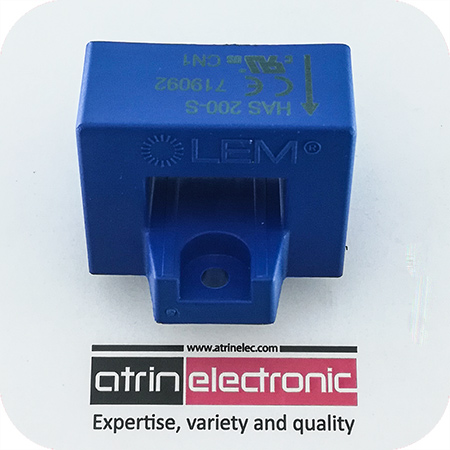

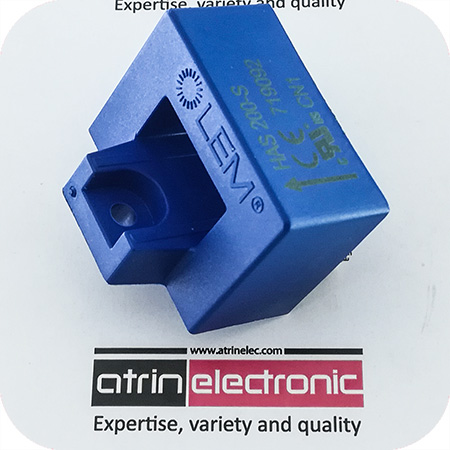

ترانسدیوسر(سنسور جریان اثر هال) 200 آمپر AC/DC Vout=±4V Current Transducers ساخت لم سوییس(امریکا) Hall-Effect Current Sensor Series
ترانسدیوسر(سنسور جریان اثر هال) 200 آمپر AC/DC
بسیار با دوام و با کیفیت
طول عمر بالا
Current Transducers
ساخت لم سوییس(امریکا)
Vout=±4V
Current Transducer HAS200-SCurrent Transducers HAS 50 to 200-S For the electronic measurement of currents: DC, AC, pulsed, mixed
(with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit
موارد استفاده:
انواع اینورترهای دور و جریان
انواع محافظ های تابلو برق
انواع دستگاه های جوش و برش اینورتری
انواع نمایشگرهای جریان
مصارف عمومی
مخابراتی
نظامی و غیره ...
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
ترانسدیوسر- مبدل پارامتر |
سری |
اندازه گیری جریان |
تعداد پین |
3 |
پکیج |
MODULE |
ولتاژ کاری |
±15V |
جریان کاری |
200A |
IPN |
200A |
IP |
±90A |
VOUT |
±4V |
VC |
±12-15V |
IC |
±15mA |
TR-tr |
T<3µs |
TA |
80+~10- |
TS |
80+~25- |
ابعاد |
40x30x20mm |
دمای کاری |
80+~25- |
برند |
LEM |
کشور سازنده |
سوئیس |
کیفیت |
اورجینال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
:Features
Hall effect measuring principle
Galvanic isolation between primary
and secondary circuit
Isolation voltage 3000 V
Low power consumption
(Extended measuring range (3 x IPN
Insulated plastic case made of polycarbonate PBT recognized
according to UL 94-V0
:Advantages
Easy mounting
Small size and space saving
Only one design for wide current
ratings range
High immunity to external
interference
:Applications
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
(Uninterruptible Power Supplies (UPS
(Switched Mode Power Supplies (SMPS
Power supplies for welding applications
50 ± 150 HAS 50-S
100 ± 300 HAS 100-S
200 ± 600 HAS 200-S
300 ± 900 HAS 300-S
400 ± 900 HAS 400-S
500 ± 900 HAS 500-S
600 ± 900 HAS 600-S
