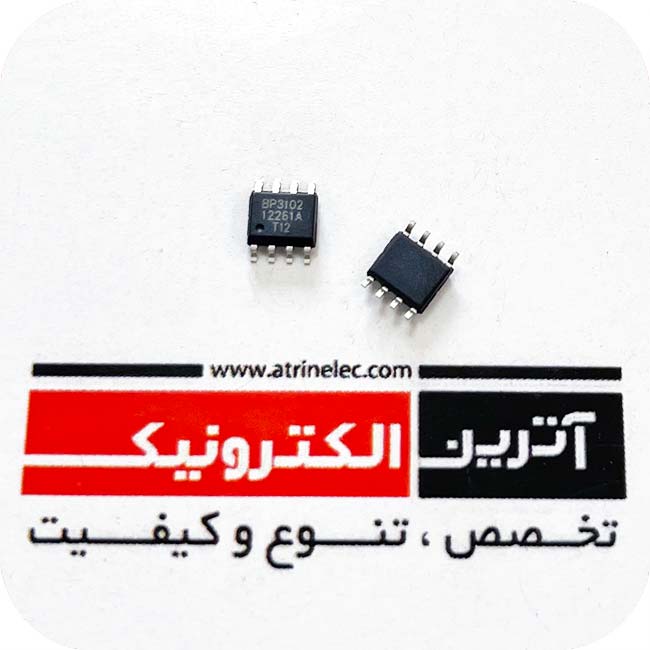

درایور LED با ماسفت داخلی 600 ولت High Precision PSR Constant Current LED Driver
استفاده در ساخت انواع چراغ های ال ای دی و لامپ ها
Features
Built-in 600V Power MOSFET
Constant current control without secondary sense
and feedback circuit.
±3% LED current accuracy
Ultra low operating current to improve efficiency
High resistance feedback resistor to improve
efficiency
Universal input voltage
LED short and open circuit protection
VCC under-voltage protection
Feedback loop short circuit protection
Current sense resistor open circuit protection
Over temperature protection
No external loop compensation component
required
Available in SOP-8 package
Applications
GU10/E27 LED bulb, spot light
Other LED lighting
Typical Application
Figure 1. Typical application circuit for BP3102
