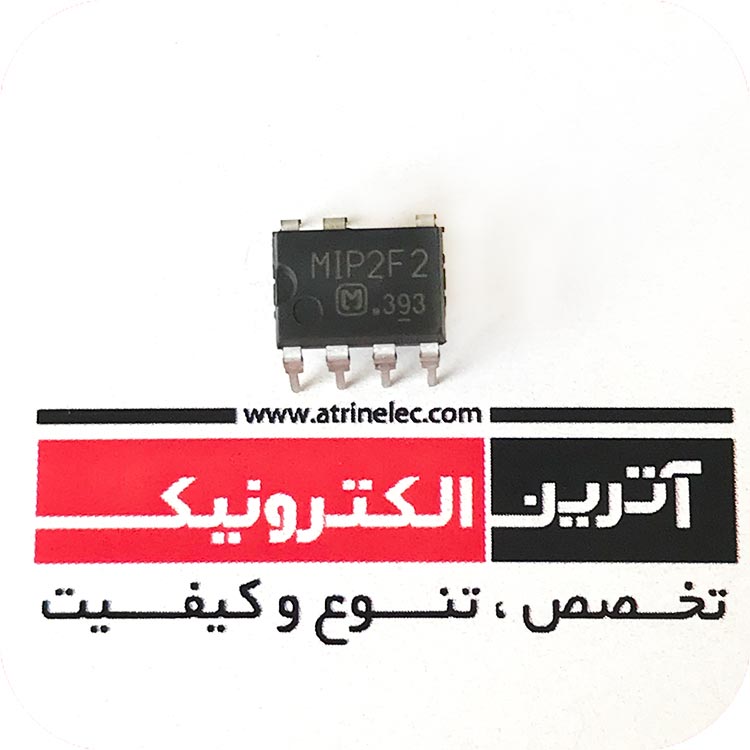

ایسی پاناسونیک کنترلر ساخت انواع منابغ تغذیه و باتری شارژر PANASONIC DIP-7 High-Performance IPD for Battery Chargers MIP2F× Series
استفاده در انواع صنایع از جمله نوسان ساز(PWM)انواع بردهای درایو دستگاه های جوش و برش و اینورتری
درایورهای دور موتور و .....
ساخت انواع اداپتور
منابع تغذیه
Overview
MIP2F× series is a high-performance IPD designed for 20W battery
chargers. It features built-in protection circuits necessary for compact
power source charger circuitry. This allows a significant reduction in
externally connected parts.
It provides PWM control when a normal load is applied and
intermittent control with low load. This results in greater efficiency
for very low to maximum loads, while also conserving power during
standby.
Feature
• Lowering the liability of input voltage
• Significantly reduced power consumption with no load
20mW at 100VAC (existing lines:25mW)
20mW at 240VAC (existing lines:30mW)
• Built-in charge protection circuit
Built-in overcurrent, overheating, load shorting and overvoltage
protection circuitsUnit : mm
Applications

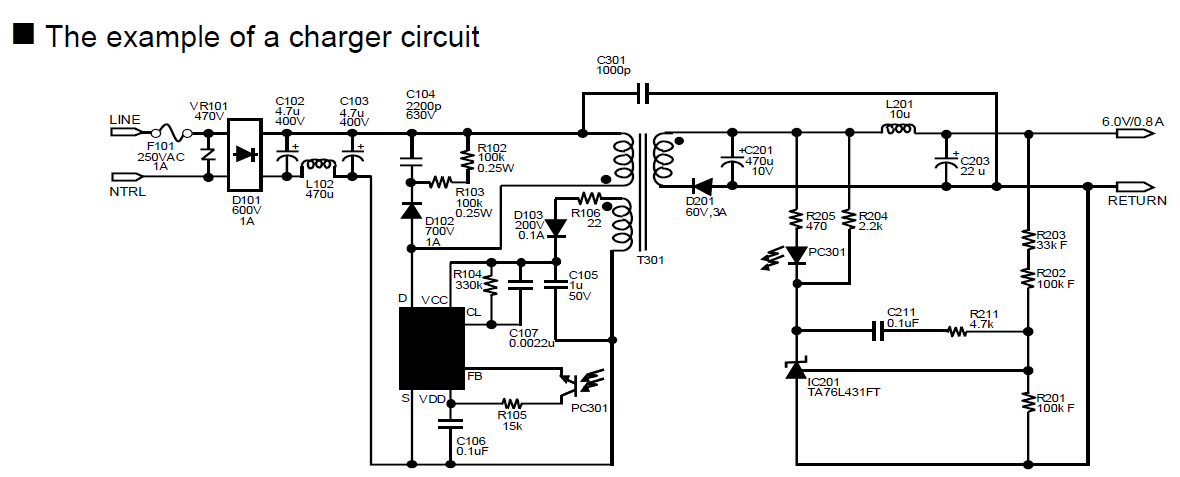

Chargers (for cellular phones, etc.), AC adapter

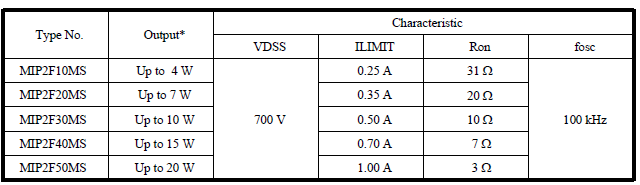

Lineup
DIP7-A1
MIP2F30MS Up to 10 W 0.50 A 10 Ω 100 kHz
0.25 A 31 Ω
700 V
MIP2F10MS Up to 4 W
VDSS ILIMIT Ron fosc
1.00 A
0.70 A
0.35 A
Characteristic
MIP2F50MS Up to 20 W 3 Ω
MIP2F40MS Up to 15 W 7 Ω
MIP2F20MS Up to 7 W 20 Ω
Type No. Output*
*
