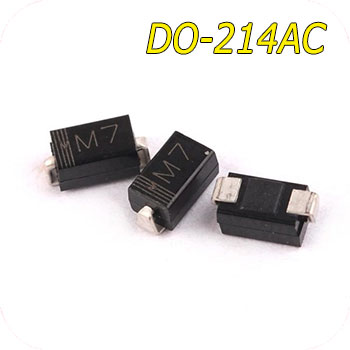

Surface Mount Fast Switching Rectifier 400 V, 1 A, DO-214AC دیودفست 400 ولت 1 آمپر اس ام دی
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Fast switching for high efficiency
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of
260 °C
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
TYPICAL APPLICATIONS
For use in fast switching rectification of power supply,
inverters, converters, and freewheeling diodes for
consumer, automotive and telecommunication
ویژگی |
مقادیر |
خانواده |
دیود |
سری دیود |
فست |
تعداد پین | 2 |
پکیج |
DO-214AC |
ولتاژکاری |
400V |
جریان کاری |
1A |
توان |
- |
VZ |
- |
VRRM | 400V |
VRMS |
280V |
VDC |
- |
VF |
- |
(IF(AV)-I(AV |
1A |
IFRM |
- |
IFSM |
25A |
(IR(25°C |
5µA |
(IR(HIGH TEMP |
50µA |
CJ |
- |
Trr |
250ns |
ابعاد |
5.5x2.8x2.3mm |
دمای کاری |
175+~65- |
برند |
vishay |
کشور سازنده |
- |
کیفیت |
ارجینال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
