ایتوپرام 2 کیلوبیت،256 بایت با رابط I2C دوسیمه I2C-Compatible (2-wire) Serial EEPROM ای سی (EEPROM 2-Kbit (256 x 8
The Atmel® AT24C01C/02C provides 2048-bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 256 words of eight bits each. Both devices include a cascading feature that allows up to eight devices to share a common 2-wire bus. These devices are optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C02C are available in space saving 8-lead PDIP packages. In addition, the entire family operates from 1.7V to 5.5V VCC
Features

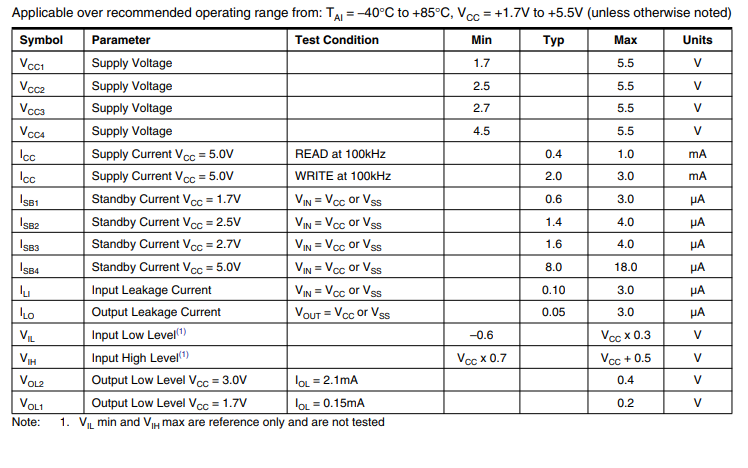

Low-voltage Operation ̶ VCC = 1.7V to 5.5V
( Internally Organized as 256 x 8 (2K
I 2 C Compatible (2-wire) Serial Interface
Schmitt Trigger, Filtered Inputs for Noise Suppression
Bidirectional Data Transfer Protocol
400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) Compatibility

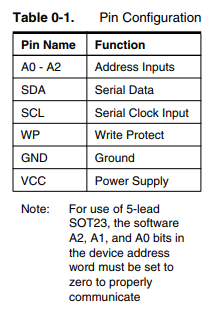

Write Protect Pin for Hardware Data Protection
8-byte Page Write Mode ̶ Partial Page Writes Allowed
( Self-timed Write Cycle (5ms max
High-reliability ̶ Endurance: 1,000,000 Write Cycles ̶ Data Retention: 100 Years

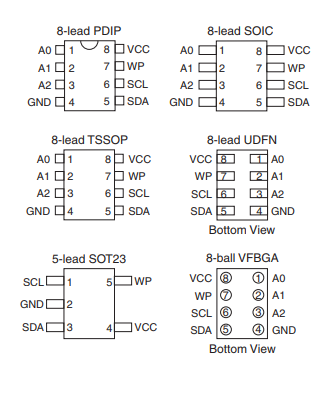

Green Package Options (Pb/Halide-free/RoHS-compliant) ̶ 8-lead PDIP
Die Sale Options: Wafer Form and Tape and Reel Available
