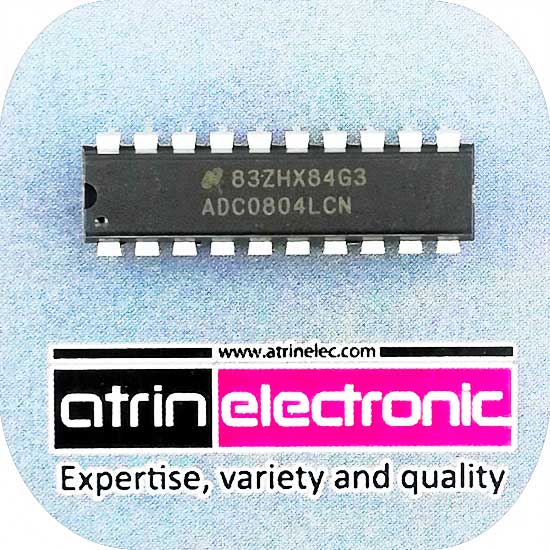

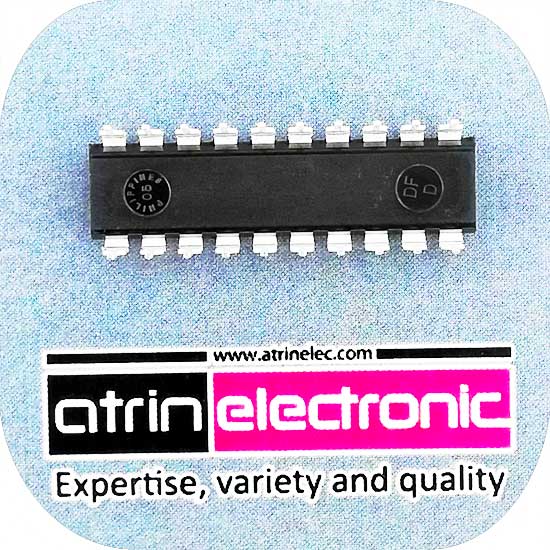

مبدل ADC ، تبدیل سیگنال آنالوگ به دیجیتال 8 بیت موازی ،ولتاژ کاری 5 ولت Analog to Digital Converters - ADC BIT 8
دریافت دیتا شیت
موارد مصرف:
استفاده در انواع صنایع از جمله بردهای مبدل انالوگ به دیجیتال
مخابراتی
مدارات مبدل سیگنال
Features
Compatible with 8080 μP derivatives—no interfacing
logic needed - access time - 135 ns
Easy interface to all microprocessors, or operates “stand
alone”
Differential analog voltage inputs
Logic inputs and outputs meet both MOS and TTL
voltage level specifications
Works with 2.5V (LM336) voltage reference
On-chip clock generator
0V to 5V analog input voltage range with single 5V
supply
No zero adjust required
Operates ratiometrically or with 5 VDC, 2.5 VDC, or
analog span adjusted voltage reference
