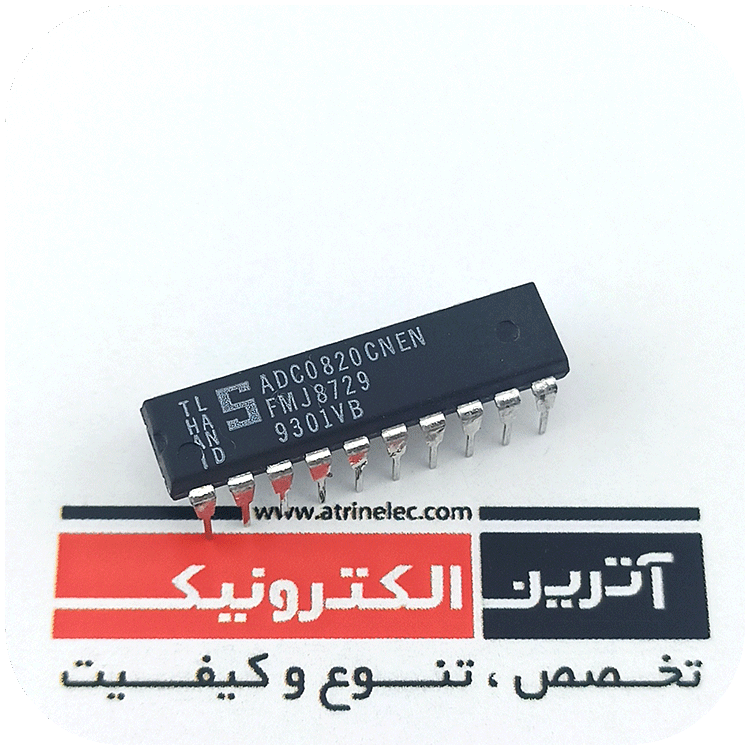

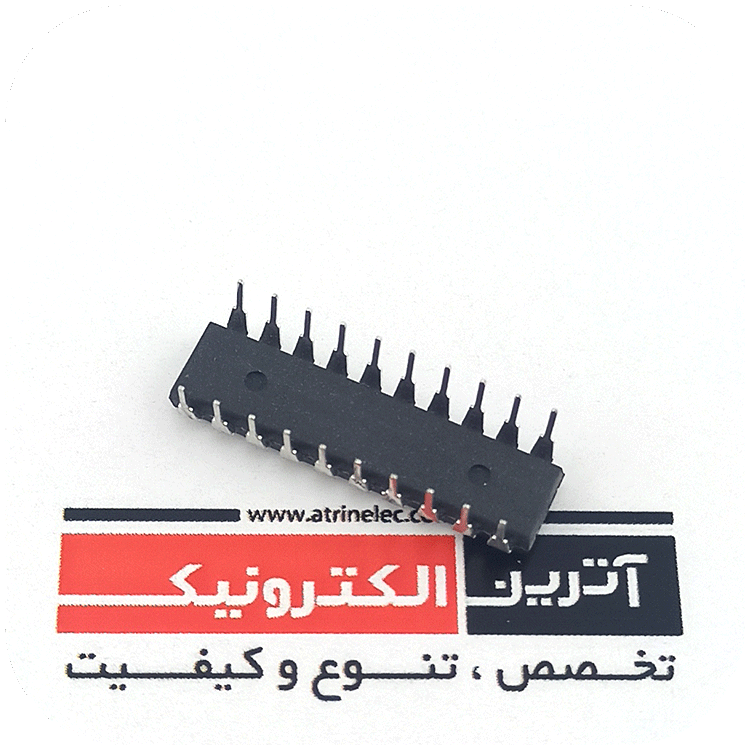

مبدل ADC ، تبدیل سیگنال آنالوگ به دیجیتال 8 بیت موازی ،ولتاژ کاری 5 ولت Analog to Digital Converters - ADC BIT 8
دریافت دیتا شیت
موارد مصرف:
استفاده در انواع صنایع از جمله بردهای مبدل انالوگ به دیجیتال
مخابراتی
مدارات مبدل سیگنال
Features
Built-in track-and-hold function
No missing codes
No external clocking
Single supply—5 VDC
Easy interface to all microprocessors, or operates
stand-alone
Latched TRI-STATE output
Logic inputs and outputs meet both MOS and T2L
voltage level specifications
Operates ratiometrically or with any reference value
equal to or less than VCC
0V to 5V analog input voltage range with single 5V
supply
No zero or full-scale adjust required
Overflow output available for cascading
