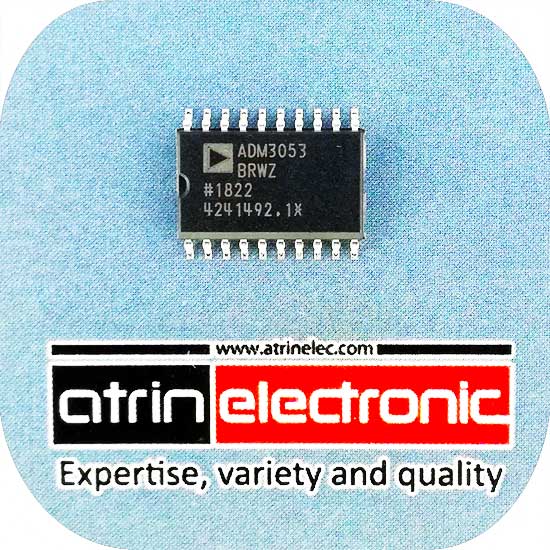

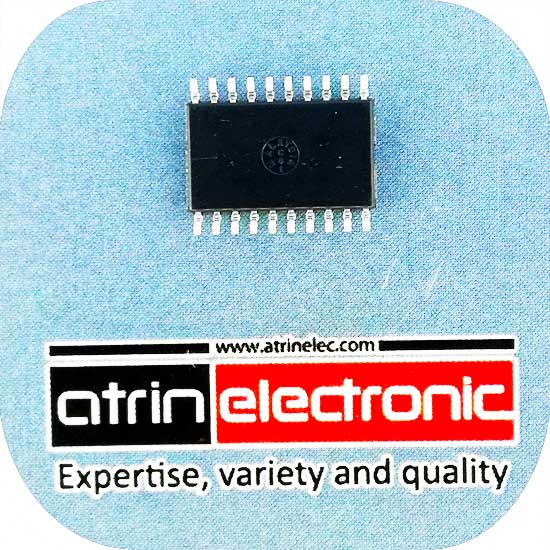

ADM3053BRWZ اورجینال

جهت ارسال دیتا سریال طبق پروتکل CAN اس ام دی High-Speed CAN Transceiver
355,000 تومان
1.2 %
350,600 تومان
2.5 %
346,300 تومان
3.7 %
342,000 تومان
پکیج: SO-20 ابعاد: 0.2x1.3x0.7 دیتاشیت
دسته بندی اصلی: الکترونیک

نقد و بررسی اجمالی

جهت ارسال دیتا سریال طبق پروتکل CAN اس ام دی High-Speed CAN Transceiver


 دریافت دیتا شیت

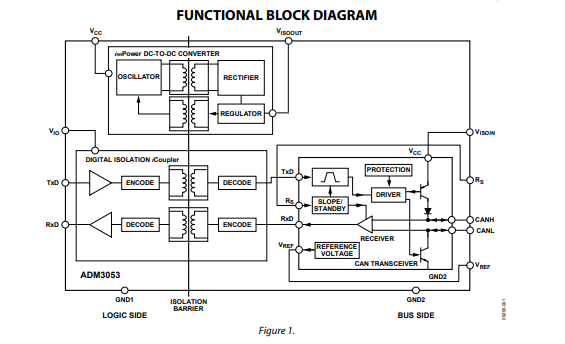

(The ADM3053 is an isolated controller area network (CAN
physical layer transceiver with an integrated isolated dc-to-dc
converter. The ADM3053 complies with the ISO 11898 standard.
The device employs Analog Devices, Inc., iCoupler® technology
to combine a 2-channel isolator, a CAN transceiver, and
Analog Devices isoPower® dc-to-dc converter into a single
SOIC surface mount package. An on-chip oscillator outputs a pair
of square waveforms that drive an internal transformer to provide
isolated power. The device is powered by a single 5 V supply
realizing a fully isolated CAN solution.
The ADM3053 creates a fully isolated interface between the
CAN protocol controller and the physical layer bus. It is capable
of running at data rates of up to 1 Mbps.
The device has current limiting and thermal shutdown features
to protect against output short circuits. The part is fully specified
over the industrial temperature range and is available in a
20-lead, wide-body SOIC package.
The ADM3053 contains isoPower technology that uses high
frequency switching elements to transfer power through the
transformer. Special care must be taken during printed circuit
board (PCB) layout to meet emissions standards. Refer to the
AN-0971 Application Note, Control of Radiated Emissions with
isoPower Devices, for details on board layout considerations


2.5 kV rms signal and power isolated CAN transceiver
isoPower integrated isolated dc-to-dc converter
5 V operation on VCC
5 V or 3.3 V operation on VIO
Complies with ISO 11898 standard
High speed data rates of up to 1 Mbps
Unpowered nodes do not disturb the bus
Connect 110 or more nodes on the bus
Slope control for reduced EMI
Thermal shutdown protection
High common-mode transient immunity: >25 kV/μs
(Safety and regulatory approvals (pending
UL recognition
2500 V rms for 1 minute per UL 1577
VDE Certificate of Conformity
DIN EN 60747-5-2 (VDE 0884 Rev.2): 2003-01
(Industrial operating temperature range (−40°C to +85°C
