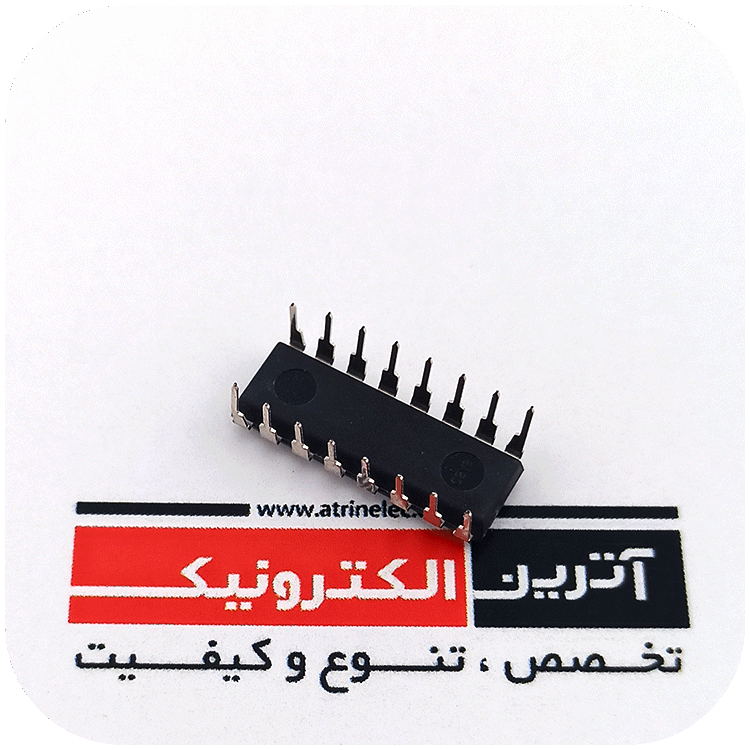

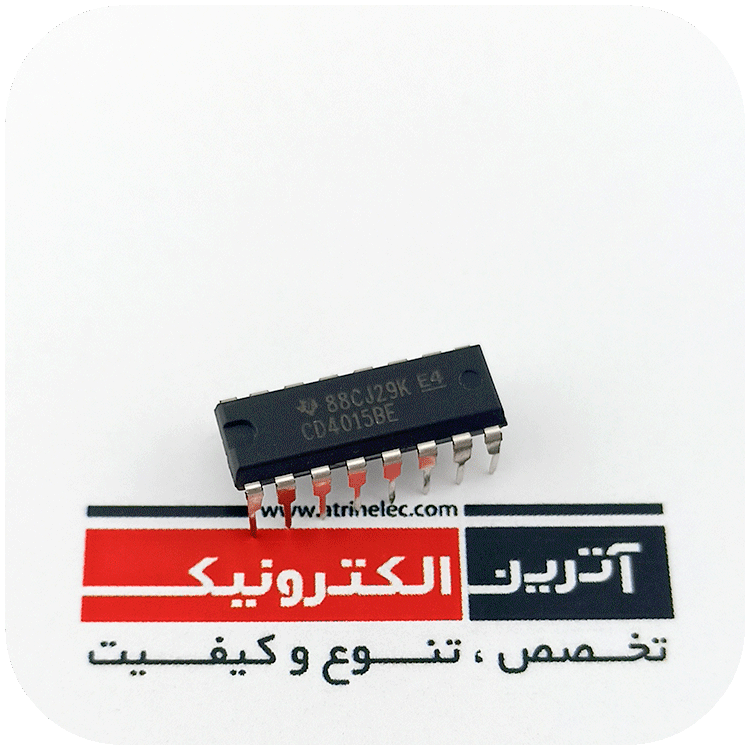

ای سی دارای دو شیفت رجیستر 4 بیتی Dual 4-Bit Static Shift Register
General Description
The CD4015BC contains two identical, 4-stage, serialinput/parallel-output registers with independent “Data”, “Clock,” and “Reset” inputs. The logic level present at the input of each stage is transferred to the output of that stage at each positive-going clock transition. A logic high on the “Reset” input resets all four stages covered by that input. All inputs are protected from static discharge by a series resistor and diode clamps to VDD and VSS
Features
Wide supply voltage range: 3.0V to 18V
(High noise immunity: 0.45 VDD (typ
Low power TTL: Fan out of 2 driving 74L compatibility: or 1 driving 74LS
Medium speed operation: 8 MHz (typ.) clock rate
Fully static design: @VDD − VSS = 10V
Applications
Serial-input/parallel-output data queueing
Serial to parallel data conversion
General purpose register
