برد کنترلر 1.5 RAMPS - پرینتر سه بعدی اورجینال

Ramps 1.5
مادربرد پرینتر سه بعدی Motherboard 3D Printer
2.0 %
229,200 تومان 224,600 تومان
4.5 %
223,500 تومان 219,000 تومان
6.9 %
217,700 تومان 213,400 تومان
9.3 %
212,000 تومان 207,800 تومان
پکیج: MODULE ابعاد: 10.1x6

نقد و بررسی اجمالی

مادربرد پرینتر سه بعدی Motherboard 3D Printer


Product Parameters

Size: 101.5 * 60.5mm
Support motor drivers: support A4988 DRV8825 and other motor drivers(support five motor drivers Simultaneously
Input voltage: 12V
Power: 200W
Patch MOS tube: B55NF06

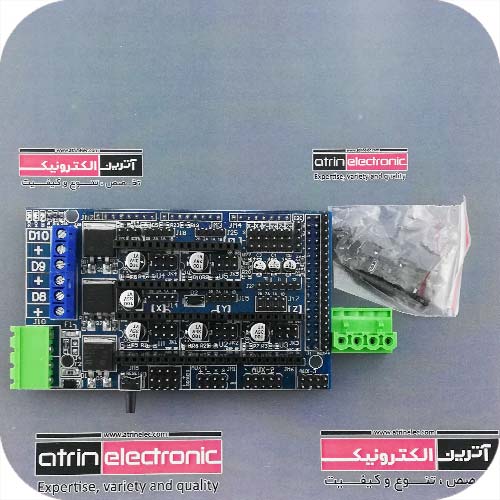

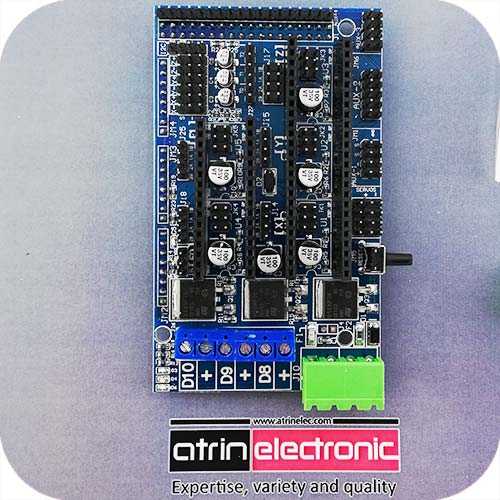

RAMPS1.5 is optimized and launched based on RAMPS1.4 by Biqu R & D team
They change the original plug-in MOS tube to patch-type MOS tube in order to solve the problem of plug-in MOS tube easy to break, take up a large area, poor heat dissipation , which can improve the stability and aesthetics of the board
The features of multiple extended interface and replaceable parts make RAMPS1.5 become a control board with powerful upgrade capability and scalable modularity
The controller board can be used when the pins on the back of the board are connected to the Arduino Mega and the front is connected to stepper motor drives
