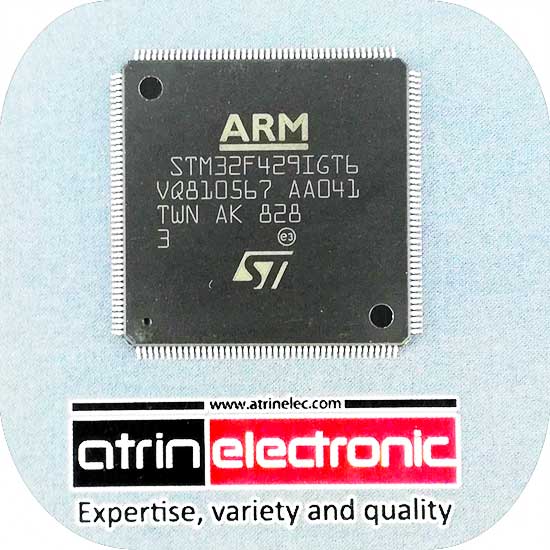

STM32F429IGT6 اورجینال

میکروکنترلر 32 بیتی آرم STM32F429IGT6
میکروکنترلر 32 بیتی با فلش 1024K و رم 256K با فرکانس 180 مگاهرتز 32b Arm® Cortex®-M4 MCU+FPU, 225DMIPS, up to 2MB Flash/256+4KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 20 com. interfaces, camera & LCD-TFT
تعداد
تخفیف
قیمت
+1
924,800 تومان
+10
2.0 %
906,300 تومان
+20
4.0 %
887,800 تومان
+50
6.0 %
869,400 تومان
برند: STMICROELECTRONICS پکیج: LQFP-176 ابعاد: 0.1x2.4x2.4 دیتاشیت

نقد و بررسی اجمالی

میکروکنترلر 32 بیتی با فلش 1024K و رم 256K با فرکانس 180 مگاهرتز 32b Arm® Cortex®-M4 MCU+FPU, 225DMIPS, up to 2MB Flash/256+4KB RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 20 com. interfaces, camera & LCD-TFT



  دریافت دیتا شیت

دریافت  کتابخانه( ALITUM  DESIGNER )

The STM32F427xx and STM32F429xx devices are based on the high-performance Arm®
Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4
core features a Floating point unit (FPU) single precision which supports all Arm® singleprecision
data-processing instructions and data types. It also implements a full set of DSP
instructions and a memory protection unit (MPU) which enhances application security.
The STM32F427xx and STM32F429xx devices incorporate high-speed embedded
memories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of
backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two
APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose
16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers.
They also feature standard and advanced communication interfaces.
• Up to three I2Cs
• Six SPIs, two I2Ss full duplex. To achieve audio class accuracy, the I2S peripherals can
be clocked via a dedicated internal audio PLL or via an external clock to allow
synchronization.
• Four USARTs plus four UARTs
• An USB OTG full-speed and a USB OTG high-speed with full-speed capability (with the
ULPI),
• Two CANs
• One SAI serial audio interface
• An SDIO/MMC interface
• Ethernet and camera interface
• LCD-TFT display controller
• Chrom-ART Accelerator™.
Advanced peripherals include an SDIO, a flexible memory control (FMC) interface, a
camera interface for CMOS sensors. Refer to Table 2: STM32F427xx and STM32F429xx
features and peripheral counts for the list of peripherals available on each part number.
The STM32F427xx and STM32F429xx devices operates in the –40 to +105 °C temperature
range from a 1.7 to 3.6 V power supply.
The supply voltage can drop to 1.7 V with the use of an external power supply supervisor
(refer to Section 3.17.2: Internal reset OFF). A comprehensive set of power-saving mode
allows the design of low-power applications.
The STM32F427xx and STM32F429xx devices offer devices in 8 packages ranging from
100 pins to 216 pins. The set of included peripherals changes with the device chosen.
DocID024030 Rev 10 15/239

These features make the STM32F427xx and STM32F429xx microcontrollers suitable for a
wide range of applications:
• Motor drive and application control
• Medical equipment
• Industrial applications: PLC, inverters, circuit breakers
• Printers, and scanners
• Alarm systems, video intercom, and HVAC
• Home audio appliances
Figure 4 shows the general block diagram of the device family

به جرات میتوان گفت محبوب ترین میکروکنترلر ها در بین خانوادهARM سری STM32 است که دارای طیف مختلف از لحاظ سایز - کارایی و قیمت هستند.

این میکرو کنترلر ها در ایران محبوبیت زیادی پیدا کرده است و همچنین مشاهده شده جدید ترین سیستم ها با این میکرو کنترلر در صنعت ساخته شده و از لحاظ کارایی و مقاومت در برابر نویز بسیار عالی عمل کرده است و برنامه نویسان به سرعت از خانواده های قبلی به این خانواده مهاجرت کرده اند.

این ای سی از بخش های متفاوت TIMER,ADC,DAC,PWM,COUNTERو... تشکیل شده است که بسته به نیاز خود می توانید نمونه های مختلف را انتخاب کنید.

توصیه مااینست برای کار با این ای سی حتما از نرم افزار STM32CUBEMX(دانلود)  استفاده کنید که آموزش کار با ان به صورت تصویری توسط گروه آترین الک(کلیک کنید) تهیه شده است.

امکانات این ای سی :

Features
• Core: Arm® 32-bit Cortex®-M4 CPU with FPU,
Adaptive real-time accelerator (ART
Accelerator™) allowing 0-wait state execution
from Flash memory, frequency up to 180 MHz,
MPU, 225 DMIPS/1.25 DMIPS/MHz
(Dhrystone 2.1), and DSP instructions
• Memories
– Up to 2 MB of Flash memory organized into
two banks allowing read-while-write
– Up to 256+4 KB of SRAM including 64-KB
of CCM (core coupled memory) data RAM
– Flexible external memory controller with up
to 32-bit data bus: SRAM, PSRAM,
SDRAM/LPSDR SDRAM, Compact
Flash/NOR/NAND memories
• LCD parallel interface, 8080/6800 modes
• LCD-TFT controller with fully programmable
resolution (total width up to 4096 pixels, total
height up to 2048 lines and pixel clock up to
83 MHz)
• Chrom-ART Accelerator™ for enhanced
graphic content creation (DMA2D)
• Clock, reset and supply management
– 1.7 V to 3.6 V application supply and I/Os
– POR, PDR, PVD and BOR
– 4-to-26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC (1%
accuracy)
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration
• Low power
– Sleep, Stop and Standby modes
– VBAT supply for RTC, 20×32 bit backup
registers + optional 4 KB backup SRAM
• 3×12-bit, 2.4 MSPS ADC: up to 24 channels
and 7.2 MSPS in triple interleaved mode
• 2×12-bit D/A converters
• General-purpose DMA: 16-stream DMA
controller with FIFOs and burst support
• Up to 17 timers: up to twelve 16-bit and two 32-
bit timers up to 180 MHz, each with up to 4
IC/OC/PWM or pulse counter and quadrature
(incremental) encoder input
• Debug mode
– SWD & JTAG interfaces
– Cortex-M4 Trace Macrocell™
• Up to 168 I/O ports with interrupt capability
– Up to 164 fast I/Os up to 90 MHz
– Up to 166 5 V-tolerant I/Os
• Up to 21 communication interfaces
– Up to 3 × I2C interfaces (SMBus/PMBus)
– Up to 4 USARTs/4 UARTs (11.25 Mbit/s,
ISO7816 interface, LIN, IrDA, modem
control)
– Up to 6 SPIs (45 Mbits/s), 2 with muxed
full-duplex I2S for audio class accuracy via
internal audio PLL or external clock
– 1 x SAI (serial audio interface)
– 2 × CAN (2.0B Active) and SDIO interface
• Advanced connectivity
– USB 2.0 full-speed device/host/OTG
controller with on-chip PHY
– USB 2.0 high-speed/full-speed
device/host/OTG controller with dedicated
DMA, on-chip full-speed PHY and ULPI
– 10/100 Ethernet MAC with dedicated DMA:
supports IEEE 1588v2 hardware, MII/RMII
• 8- to 14-bit parallel camera interface up to
54 Mbytes/s
• True random number generator
• CRC calculation unit
• RTC: subsecond accuracy, hardware calendar
• 96-bit unique ID

مشخصات بیشتر:

مشخصات/پارامتر

توضیحات/تعداد

NAME

STM32F051K6T6

MCU Family

STM32

MCU Series

STM32F0

Package

LQFP-32

Architecture

ARM Cortex-M4

Operating Temperaure

85+~ 40-

PIN

144

Digital I/O

114

Power supply

1.8-3.6V

(Frequency (max

180MHZ

Flash memory

1024KB

SRAM

256KB

ADC

 24Channels
(12Bit)

DAC

2Channels
(12Bit)

DMA

General-purpose DMA: 16-stream DMA
controller with FIFOs and burst support

SPI

6

I2C

3

I2S

2

UART+USART

8

CAN

2

 CAN FD

-

USB

2

SDIO

YES

Parallel interfaces

 SDIO,FMC

Additional Serial Interfaces

Ethernet,SAI

Display controller

LCD TFT Controller up to 1024x728

TIMER

12
(16Bit)

2

(32Bit)

PWM

4

Watchdog

2

RTC

YES
