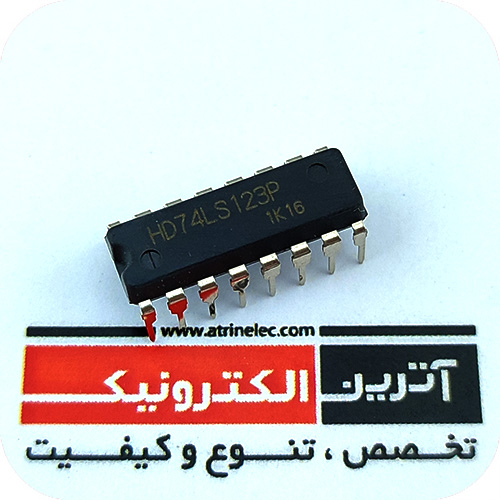

Dual Retriggerable One-Shot with Clear and Complementary Outputs آی سی مولتی ویبراتور دوبل
مشخصات کلی
نوع نصب : DIP
پکیج : DIP-16
نوع : تجاری
نوع عملکرد(Function Type) : مولتی ویبراتور مونواستابل
مشخصات تغذیه
حداکثر ولتاژ تغذیه تکی (ولت) : 5.25
سایر مشخصات محصول
تعداد کانالها : 2
نوع خروجی: Push-Pull
پردازش : Bipolar (دوقطبی)
IOL (Max) (mA) : 16
IOH (Max) (mA) : -0.8
خانوادۀ منطق: TTL
فناوری منطق: Transistor-Transistor Logic
نوع ورودی : Schmitt-Trigger
tpd (تأخیر پخش/تأخیر گیت): بیشتر از 50ns
General Description
The DM74LS123 is a dual retriggerable monostable multivibrator
capable of generating output pulses from a few
nano-seconds to extremely long duration up to 100% duty
cycle. Each device has three inputs permitting the choice of
either leading edge or trailing edge triggering. Pin (A) is an
active-LOW transition trigger input and pin (B) is an active-
HIGH transition trigger input. The clear (CLR) input terminates
the output pulse at a predetermined time independent
of the timing components. The clear input also serves
as a trigger input when it is pulsed with a low level pulse
transition ( ). To obtain the best trouble free operation
from this device please read the operating rules as well as
the Fairchild Semiconductor one-shot application notes
carefully and observe recommendations.
Features
DC triggered from active-HIGH transition or active-LOW
transition inputs
Retriggerable to 100% duty cycle
Compensated for VCC and temperature variations
Triggerable from CLEAR input
DTL, TTL compatible
Input clamp diodes
