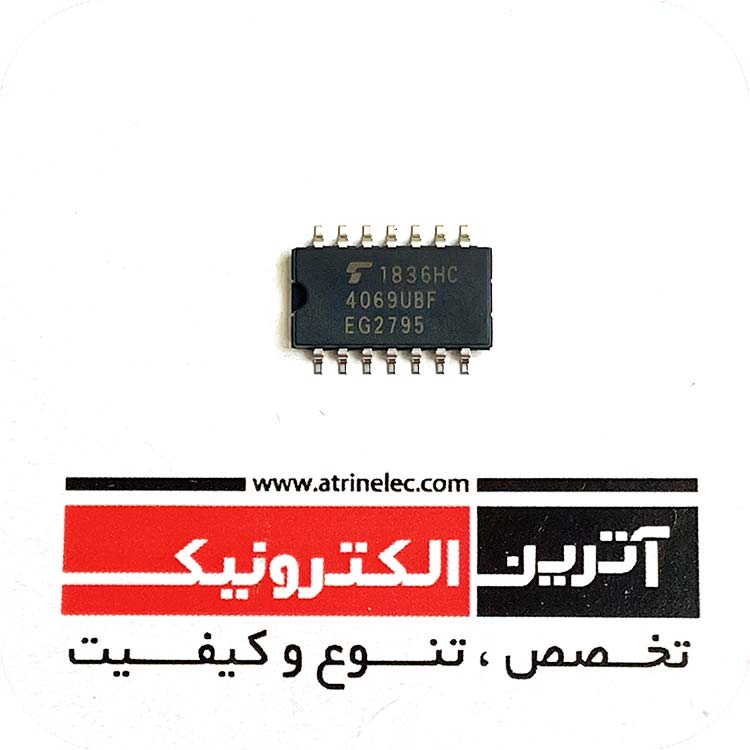

آیسی معکوس کننده هگز 6 تایی nverter 6-Element CMOS 14-Pin SOP T/R

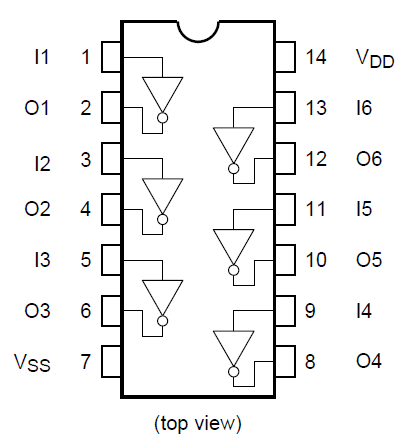

TC4069UB contains six circuits of inverters. Since the internal
circuit is composed of a single stage inverter, this is suitable for
the applications of CR oscillator circuits, crystal oscillator circuits
and linear amplifiers in addition to its application as inverters.
Because of one stage gate configuration, the propagation time
has been reduced
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Automotive | No |
| PPAP | No |
| Logic Family | 4000B |
| Logic Function | Inverter |
| Number of Elements per Chip | 6 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 110@5V|60@10V|50@15V |
| Absolute Propagation Delay Time (ns) | 110 |
| Process Technology | CMOS |
| Maximum Low Level Output Current (mA) | 4(Min) |
| Maximum High Level Output Current (mA) | -4(Min) |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 15|12|9|3.3|5 |
| Maximum Operating Supply Voltage (V) | 18 |
| Typical Quiescent Current (uA) | 0.002 |
| Maximum Quiescent Current (uA) | 1 |
| Propagation Delay Test Condition (pF) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tape and Reel |
| Supplier Package | SOP |
| Pin Count | 14 |
| Standard Package Name | SOP |
| Mounting | Surface Mount |
| Package Height | 1.5 |
| Package Length | 10.8(Max) |
| Package Width | 5.3 |
| PCB changed | 14 |
| Lead Shape | Gull-wing |
DIP14-P-300-2.54 : 0.96 g (typ.)
SOP14-P-300-1.27A : 0.18 g (typ.)
TSSOP14-P-0044-0.65A : 0.06 g (typ.)
