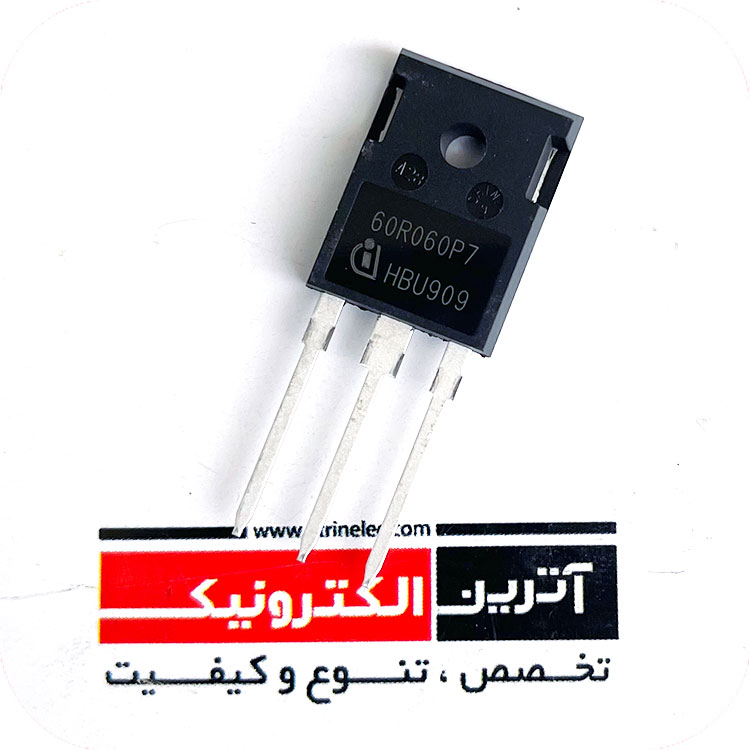

60R060P7 اورجینال - بالاترین کیفیت- واردات از دیجی کی اتریش

IPP60R060P7
600V,48A CoolMOSª P7 Power Transistor ماسفت قدرت N کانال 600 ولت 48 آمپر اینفینئون RDS(on) =60m
201,700 تومان
برند: INFINEON پکیج: TO-220

نقد و بررسی اجمالی

600V,48A CoolMOSª P7 Power Transistor ماسفت قدرت N کانال 600 ولت 48 آمپر اینفینئون RDS(on) =60m



دریافت  کتابخانه( ALITUM  DESIGNER )

استفاده در انواع پاورها

سرورها

اداپتورها

ال سی دی

مخابراتی

ماینر miner

MOSFET
600V CoolMOSª P7 Power Transistor
The CoolMOS™ 7th generation platform is a revolutionary technology for
high voltage power MOSFETs, designed according to the superjunction
(SJ) principle and pioneered by Infineon Technologies. The 600V
CoolMOS™ P7 series is the successor to the CoolMOS™ P6 series. It
combines the benefits of a fast switching SJ MOSFET with excellent ease
of use, e.g. very low ringing tendency, outstanding robustness of body
diode against hard commutation and excellent ESD capability.
Furthermore, extremely low switching and conduction losses make
switching applications even more efficient, more compact and much
cooler.
Features
• Suitable for hard and soft switching (PFC and LLC) due to an outstanding
commutation ruggedness
• Significant reduction of switching and conduction losses
• Excellent ESD robustness >2kV (HBM) for all products
• Better RDS(on)/package products compared to competition enabled by a
low RDS(on)*A (below 1Ohm*mm²)
• Fully qualified acc. JEDEC for Industrial Applications
Benefits
• Ease of use and fast design-in through low ringing tendency and usage
across PFC and PWM stages
• Simplified thermal management due to low switching and conduction
losses
• Increased power density solutions enabled by using products with
smaller footprint and higher manufacturing quality due to >2 kV ESD
protection
• Suitable for a wide variety of applications and power ranges
Potential applications
PFC stages, hard switching PWM stages and resonant switching stages
for e.g. PC Silverbox, Adapter, LCD & PDP TV, Lighting, Server, Telecom
and UPS.


موارد استفاده :

انواع سوئیچینگ

ماینر ها

پاور های صنعتی

مشخصات:

مشخصات - پارامترها

مقادیر

خانواده

ماسفت

سریMOSFET-FET

MOSFET-Transistors

تعداد پین

3

پکیج

TO-247

ولتاژکاری

600V

جریان کاری

48A

نوع کانال

N-CHANNEL

VDS-VDSS

600V

VGS-VGSS

±30V

VGS(th)

-

 ID(25°C)

-

 ID(HIGH TEMP)

30A

IDM-IDP

151A

PD(TA=25°C)

-

PD(TC=25°C)

-
RDS(on)

60mΩ

td(ON)

-

tr

-

td(off)

-

Trr

-

MOSFET PACK

1

ابعاد

15.90x20.30x5.30mm

دمای کاری

175+~55-

برند

infineon

کشور سازنده

-

کیفیت

اورجینال
نوع مونتاژ DIP
ویژگی خاص -


مشخصات بیشتر:
Advanced Process Technology
l Dynamic dv/dt Rating
l 175°C Operating Temperature
l Fast Switching
l Fully Avalanche Rated
