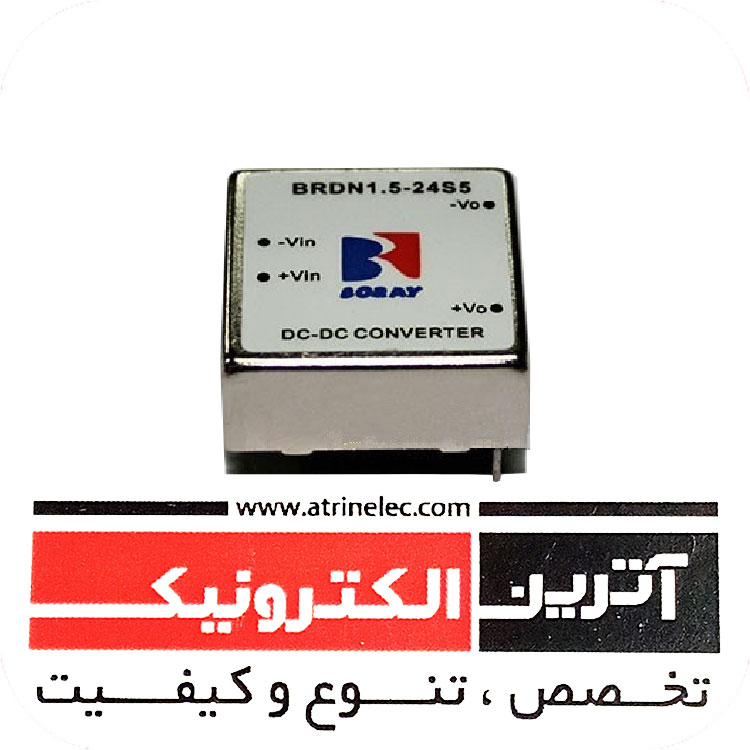

کانورتر DC به ولتاژ 24 به 5 ولت با جریان 1.5 آمپر (24 ولت دی سی ورودی - 5 وات دی سی با جریان 1.5 آمپر خروجی) DC-DC Converter , Isolated , Single & Dual Output
استفاده در همه صنایع از جمله جوش و برش و اینورتر
مخابراتی
اینورترها و مدارات الکترونیکی
کانورتر DC به ولتاژ 24 به 5 ولت با جریان 1.5 آمپر (24 ولت دی سی ورودی - 5 وات دی سی با جریان 1.5 آمپر خروجی)
PIN |
single output |
Dual output |
1 |
+INPUT |
+INPUT |
2 |
—INPUT |
—INPUT |
3 |
+OUTPUT |
+OUPUT |
4 |
NC |
COMMON |
5 |
COMMON |
-OUTPU |
FEATURES:
·Dimensions: 25.4×25.4×10.16mm
The isolation voltage between input and output is not less than 500VDC
·Isolation capacitance between input and output is not more than 30PF
·Output overcurrent protection
·Temperature coefficient not more than 2×10-4
·Output noise ripple not more than 60mVp-p(20MHz)
·Working temperature: -25~+60℃
·Storage temperature: -40~+100℃
