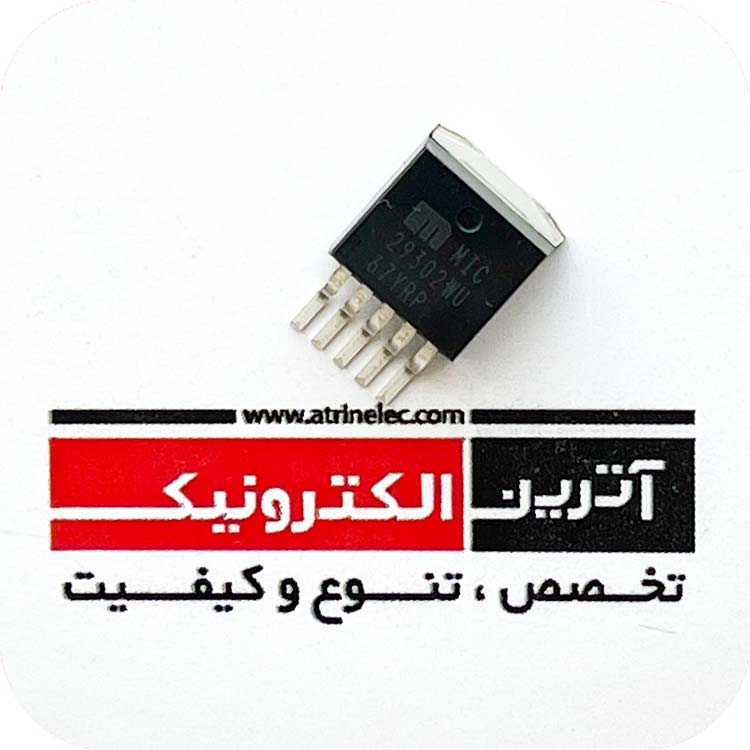

رگولاتور خطی 1.25 تا 25 ولت 3 آمپر TO-263-5 LDO Voltage Regulators 3.0A LDO Adj. + Shutdown
رگلاتور 3 امپر خطی با قابلیت خاموش کردن
استفاده در صنایع :
ماینر /تجهیزات باتری/پاورهای کامپیوتر/پاورهای صنعتی/اتومبیل/سوئیچینگ ها
High-Current Low Dropout Regulators
Features
• High Current Capability:
- MIC29150/29151/29152/29153: 1.5A
- MIC29300/29301/29302/29303: 3A
- MIC29500/29501/29502/29503: 5A
- MIC29751/29752: 7.5A
• Low Dropout Voltage
• Low Ground Current
• Accurate 1% Guaranteed Tolerance
• Extremely Fast Transient Response
• Reverse-Battery and “Load Dump” Protection
• Zero-Current Shutdown Mode (5-Pin Versions)
• Error Flag Signals Output Out-of-Regulation
(5-Pin Versions)
• Also Characterized for Smaller Loads with
Industry-Leading Performance Specifications
• Fixed-Voltage and Adjustable Versions
Applications
• Battery-Powered Equipment
• High-Efficiency Green Computer Systems
• Automotive Electronics
• High-Efficiency Linear Power Supplies
• High-Efficiency Post-Regulator for Switching
Supply
General
| Product Attribute | Attribute Value |
|---|---|
| Microchip | |
| LDO Voltage Regulators | |
| RoHS: | Details |
| SMD/SMT | |
| TO-263-5 | |
| 1.25 V to 25 V | |
| 3 A | |
| 1 Output | |
| Positive | |
| 2.3 V | |
| 26 V | |
| Adjustable | |
| - 40 C | |
| + 125 C | |
| 370 mV | |
| MIC29302 | |
| Tube | |
| Brand: | Microchip Technology |
| Dropout Voltage - Max: | 600 mV |
| Ib - Input Bias Current: | 40 nA |
| Line Regulation: | 0.06 % |
| Load Regulation: | 0.2 % |
| Moisture Sensitive: | Yes |
| Product Type: | LDO Voltage Regulators |
| Reference Voltage: | 1.24 V |
| 50 | |
| Subcategory: | PMIC - Power Management ICs |
| Tolerance: | 1 % |
| Unit Weight: | 0.056438 oz |
