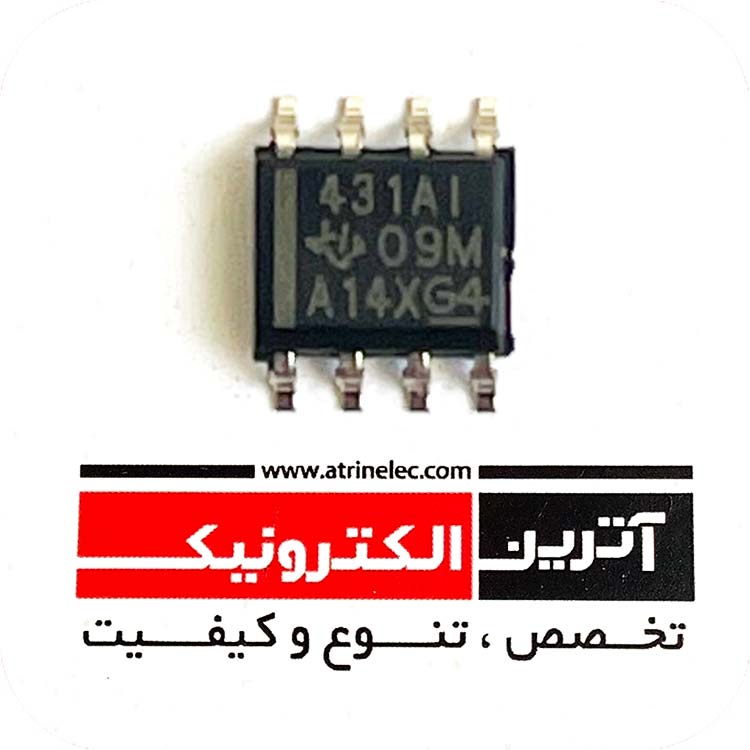

رگلاتور اس ام دی متغییر با نمونه گیری از شنت - 100 میلی آمپر- Voltage References Adj Shunt
Features
1• Reference Voltage Tolerance at 25°C
– 0.5% (B Grade)
– 1% (A Grade)
– 2% (Standard Grade)
• Adjustable Output Voltage: Vref to 36 V
• Operation From −40°C to 125°C
• Typical Temperature Drift (TL43xB)
– 6 mV (C Temp)
– 14 mV (I Temp, Q Temp)
• Low Output Noise
• 0.2-Ω Typical Output Impedance
• Sink-Current Capability: 1 mA to 100 mA
Applications
• Adjustable Voltage and Current Referencing
• Secondary Side Regulation in Flyback SMPSs
• Zener Replacement
• Voltage Monitoring
• Comparator with Integrated Reference
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Voltage References | |
| RoHS: | Details |
| Through Hole | |
| PDIP-8 | |
| Shunt Adjustable Precision References | |
| Adjustable | |
| 2 % | |
| 92 PPM / C | |
| 36 V | |
| 100 mA | |
| - 40 C | |
| + 125 C | |
| TL431 | |
| Tube | |
| Brand: | Texas Instruments |
| Description/Function: | ADJUSTABLE PRECISION SHUNT REGULATOR |
| Height: | 4.57 mm |
| Length: | 9.81 mm |
| Maximum Output Voltage: | 36 V |
| Product: | Voltage References |
| Product Type: | Voltage References |
| Shunt Current - Min: | 600 uA |
| 50 | |
| Subcategory: | PMIC - Power Management ICs |
| Topology: | Shunt References |
| Width: | 6.35 mm |
| Unit Weight: | 0.015535 oz |
