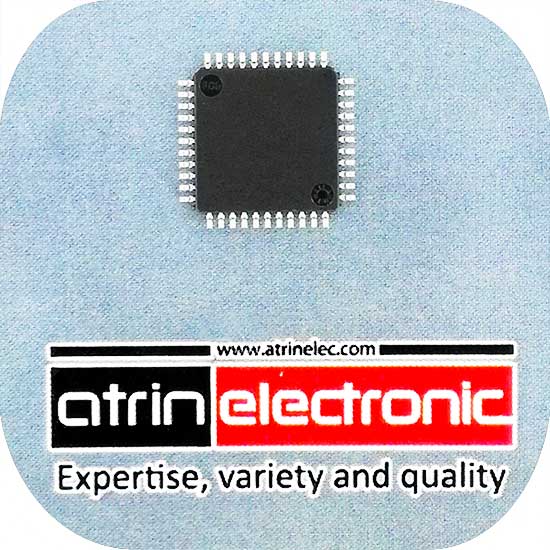

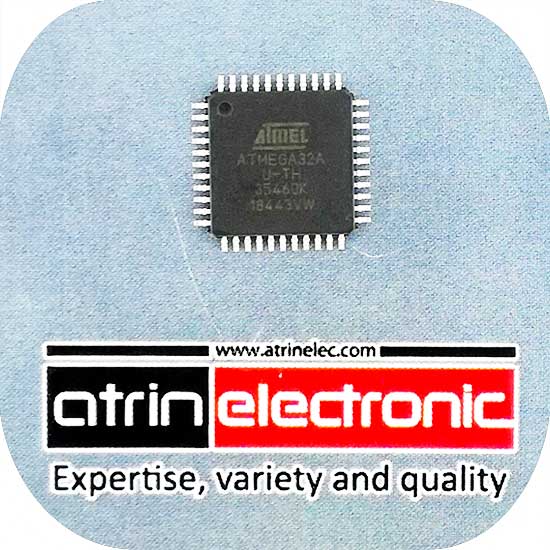

ATMEGA32A-AU اورجینال - ساخت تایوان

ATMEGA32A-AU/اتمگا32//میکروAVR
میکروکنترلر 8 بیت اتمل با فلش 32 کیلو بایت و فرکانس 16 مگاهرتز-اس ام دی
تعداد
تخفیف
قیمت
+1
75,100 تومان
+20
1.7 %
73,800 تومان
+50
3.6 %
72,400 تومان
+100
5.3 %
71,100 تومان
توجه: حداقل تعداد خرید این محصول 1 عدد می باشد.
برند: ATMEL پکیج: TQFP-44 ابعاد: 0.2x1x1 دیتاشیت

نقد و بررسی اجمالی

میکروکنترلر 8 بیت اتمل با فلش 32 کیلو بایت و فرکانس 16 مگاهرتز-اس ام دی



ATMEGA32A-AU

میکروکنترلر 8 بیت اتمل
8Bit Microcontroller with 32K Bytes In-System
Programmable Flash
TQFP-44 ,ATMEL
میکروکنترلر اتمل

اس ام دی 40

 دریافت دیتا شیت

دریافت  کتابخانه( ALITUM  DESIGNER )

مشخصات بیشتر:

امکانات  Features

ATMEGA

(ATMEGA(L

(ATMEGA(A

VCC

4.5-5.5V

2.7-5.5V

2.7-5.5V

FREQUENCY

0-16MHZ

0-8MHZ

 0-16MHZ

FLASH

32Kbyte

32Kbyte

32Kbyte

EEPROM

1024Byte

1024Byte

1024Byte

SRAM

2Kbyte

2Kbyte

2Kbyte

TIMER-COUNTER

TWO 8Bit

ONE 16Bit

TWO 8Bit

ONE 16Bit

TWO 8Bit

ONE 16Bit

PWM

4

4

4

(ADC (10 BIT

8channel

8channel

8channel

SPI

1

1

1

I2C

1

1

1

UART

1

1

1

SLEEP MODE

6

6

6

WATCHDOG

YES

YES

YES

RTC

پشتیبانی میکند

پشتیبانی میکند

پشتیبانی میکند

PLL

-

-

-

DMA

-

-

-

DAC

-

-

-

Features
 High-performance, Low-power Atmel AVR 8-bit Microcontroller
Advanced RISC Architecture
131 Powerful Instructions – Most Single-clock Cycle Execution
32 x 8 General Purpose Working Registers
Fully Static Operation
Up to 16MIPS Throughput at 16MHz
On-chip 2-cycle Multiplier
High Endurance Non-volatile Memory segments
16KBytes of In-System Self-programmable Flash program memory
512Bytes EEPROM
1KByte Internal SRAM
Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
Data retention: 20 years at 85°C/100 years at 25°C
Optional Boot Code Section with Independent Lock Bits
 In-System Programming by On-chip Boot Program
 True Read-While-Write Operation
 Programming Lock for Software Security
 JTAG (IEEE std. 1149.1 Compliant) Interface Boundary scan Capabilities According to the JTAG Standard
Extensive On-chip Debug Support
Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG
Interface
 Peripheral Features
Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and
Capture Mode
Real Time Counter with Separate Oscillator
Four PWM Channels
8channel, 10-bit ADC
 8Single-ended Channels
7Differential Channels in TQFP Package Only
 2Differential Channels with Programmable Gain at 1x, 10x, or 200x
Byte-oriented Two-wire Serial Interface
Programmable Serial USART
Master/Slave SPI Serial Interface
 Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
ATmega16A
8bit Microcontroller with 16K Bytes In-System
Programmable Flash
DATASHEET
ATmega16A [DATASHEET] 2
Atmel-8154C-8-bit-AVR-ATmega16A_Datasheet-07/2014
 Special Microcontroller Features
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated RC Oscillator
External and Internal Interrupt Sources
Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
 I/O and Packages
32 Programmable I/O Lines
40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF
 Operating Voltages
2.7 - 5.5V
 Speed Grades
0 - 16MHz
 Power Consumption @ 1MHz, 3V, and 25°C
̶Active: 0.6mA
Idle Mode: 0.2mA
Power-down Mode: < 1μA
