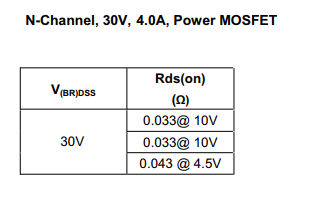

ماسفت تک 30 ولت ، 4 آمپر ،کانال N ،مقاومت درین سورس 33 میلی اهم N-Channel enhancement N-Channel, 30V, 4.0A, Power MOSFET
Descriptions
The WNM3003 is N-Channel enhancement MOS
Field Effect Transistor. Uses advanced trench technology
and design to provide excellent RDS (ON) with low gate
charge. This device is suitable for use in DC-DC
conversion and power switch applications. Standard
Product WNM3003 is Pb-free.
Features
z Trench Technology
z Supper high density cell design
z Excellent ON resistance for higher DC current
z Extremely Low Threshold Voltage

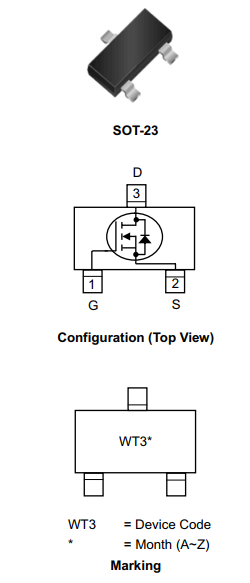

z Small package SOT-23
Applications
z Driver for Relay, Solenoid, Motor, LED etc.
z DC-DC converter circuit
z Power Switch
z Load Switch
z Charging
