آی سی کنترل ال سی دی برای افزایش تعداد نمایشگر 44 سگمنت RAM Mapping 44*4 LCD Controller Driver

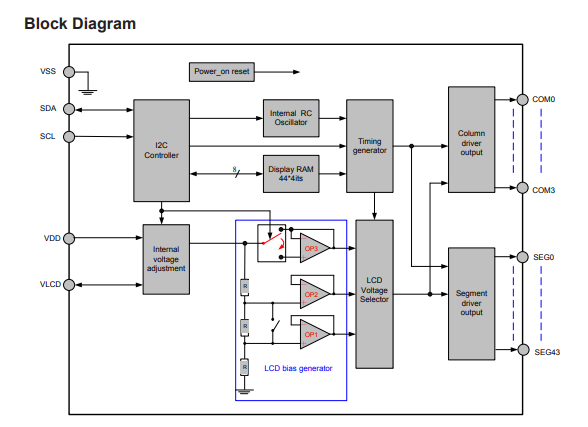

The HT16C22/HT16C22G device is a memory Features
• Operating voltage: 2.4V~5.5V
• Internal 32kHz RC oscillator
• Bias: 1/2 or 1/3; Duty: 1/4
• Internal LCD bias generation with voltage-follower
buffers
• I2C-bus interface
• Two Selectable LCD frame frequencies: 80Hz or
160Hz

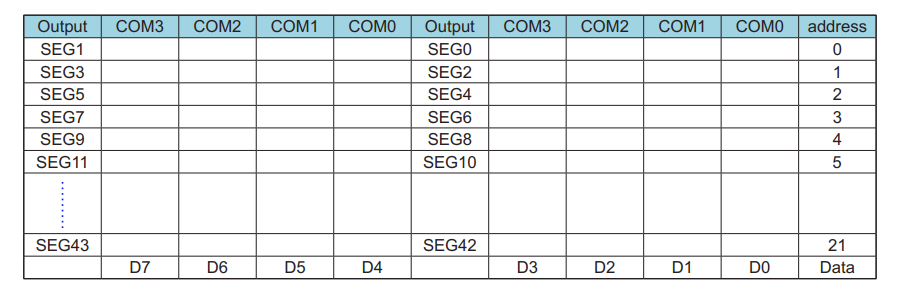

• 44×4 bits RAM for display data storage
• Max. 44×4 patterns, 44 segments and 4 commons
• Versatile blinking modes
• R/W address auto increment
• Internal 16-step voltage adjustment to adjust LCD
operating voltage
• Low power consumption

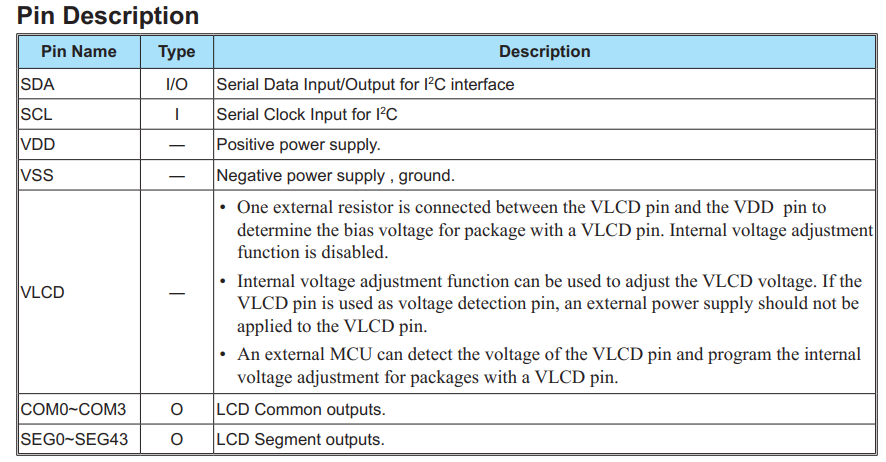

• Provides VLCD pin to adjust LCD operating voltage
• Manufactured in silicon gate CMOS process

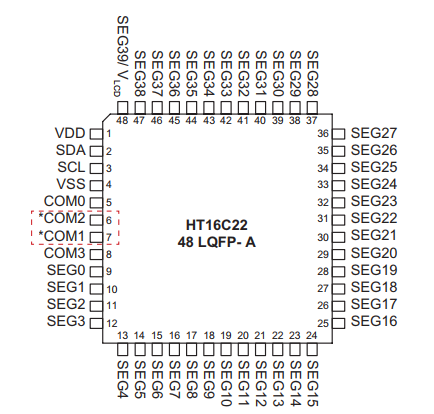

• Package Type: 48/52-pin LQFP, chip and COG
mapping and multi-function LCD controller driver.
The maximum Display segments of the device are 176
patterns (44 segments and 4commons). The software
configuration feature of the HT16C22/HT16C22G
makes it suitable for multiple LCD applications
including LCD modules and display subsystems. The

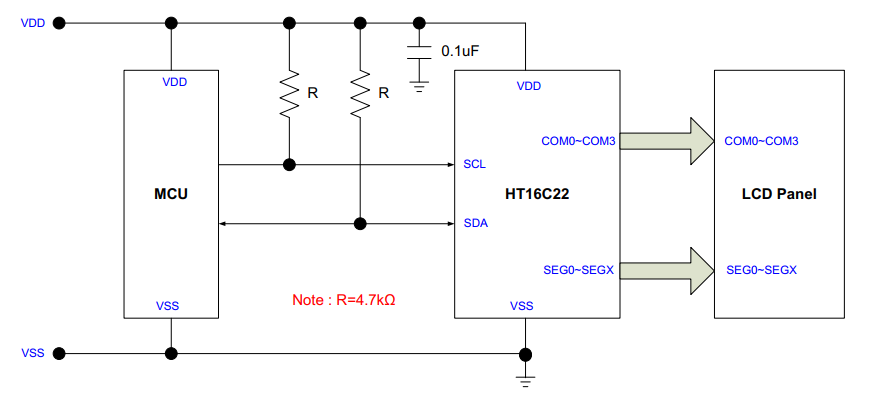

HT16C22/HT16C22G device communicates with
most microprocessors / microcontrollers via a twoline bidirectional I2C-bus.
