HT68F003 اورجینال

نقد و بررسی اجمالی

میکروکنترلر 8 بیت هولتک با فلش 1Kx14bit و فرکانس 8 مگاهرتز- اس ام دی 16 پایه Flash Memory type 8-bit high performance RISC architecture microcontrollers

 دریافت دیتا شیت

The devices are Flash Memory type 8-bit high performance RISC architecture microcontrollers. Offering users the convenience of Flash Memory multi-programming features, these devices also include a wide range of functions and features. Other memory includes an area of RAM Data Memory as well as an area of true EEPROM memory for storage of non-volatile data such as serial numbers, calibration data etc.

Analog features include multiple and extremely flexible Timer Modules provide timing, pulse generation, capture input, compare match output and PWM generation functions. Protective features such as an internal Watchdog Timer and Low Voltage Reset and Low Voltage Detector coupled with excellent noise immunity and ESD protection ensure that reliable operation is maintained in hostile electrical environments.

A full choice of HIRC and LIRC oscillator functions are provided including a fully integrated system oscillator which requires no external components for its implementation.

The inclusion of flexible I/O programming features, Time-Base functions along with many other features ensure that the devices will find excellent use in applications such as electronic metering, environmental monitoring, handheld instruments, household appliances, electronically controlled tools, motor

driving in addition to many others.

CPU Features

• Operating Voltage
  - f_SYS= 8MHz: 2.2V~5.5V
• Up to 0.5us instruction cycle with 8MHz system clock at V_DD=5V
• Power down and wake-up functions to reduce power consumption
• Two Oscillators
  - Internal High Speed 8MHz RC oscillator – HIRC
  - Internal Low Speed 32kHz RC oscillator – LIRC
• Fully intergrated internal oscillators require no external components
• Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
• All instructions executed in one or two instruction cycles
• Table read instructions
• 63 powerful instructions
• Up to 4 level subroutine nesting
• Bit manipulation instruction

Peripheral Features

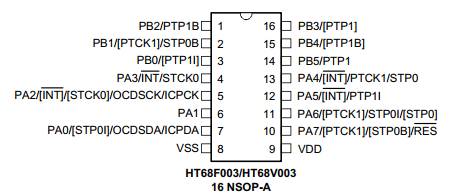

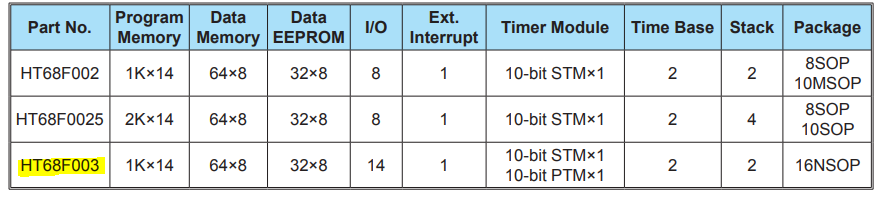

• Flash Program Memory: 1Kx14 ~ 2Kx14
• RAM Data Memory: 64x8
• True EEPROM Memory: 32x8
• Watchdog Timer function
• Up to 14 bidirectional I/O lines
• One pin-shared external interrupt
• Multiple Timer Modules for time measure, compare match output, capture input, PWM output functions
• Dual Time-Base functions for generation of fixed time interrupt signals
• Low voltage reset function
• Low voltage detect function
• Multiple package types
• Flash program memory can be re-programmed up to 100,000 times
• Flash program memory data retention > 10 years
• True EEPROM data memory can be re-programmed up to 1,000,000 times
• True EEPROM data memory data retention > 10 years
