ترانسدیوسر(سنسور جریان اثر هال) 600 آمپر AC/DC Vout=±4V Current Transducers ساخت لم سوییس(امریکا) Hall-Effect Current Sensor Series
ترانسدیوسر(سنسور جریان اثر هال) 600 آمپر AC/DC
Current Transducers
ساخت لم سوییس(امریکا)
Vout=±4V

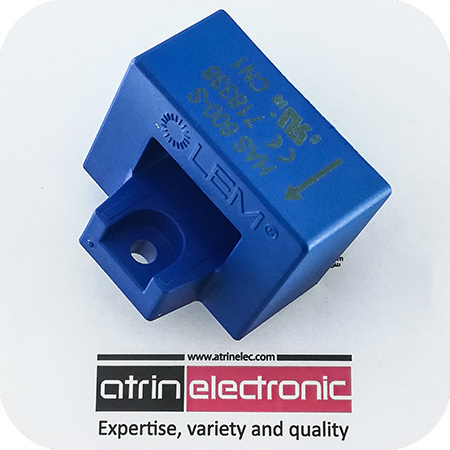

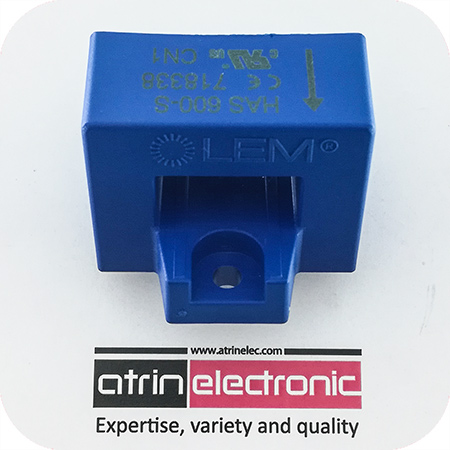

Current Transducer HAS600-SCurrent Transducers HAS 50 to 600-S
For the electronic measurement of currents: DC, AC, pulsed, mixed,
with a galvanic isolation between the primary circuit (high power) and
the secondary circuit (electronic circuit)..
بسیار با دوام و با کیفیت
طول عمر بالا
انواع اینورترهای دور و جریان
انواع محافظ های تابلو برق
انواع دستگاه های جوش و برش اینورتری
انواع نمایشگرهای جریان
مصارف عمومی
مخابراتی
نظامی و غیره ...
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
ترانسدیوسر- مبدل پارامتر |
سری |
اندازه گیری جریان |
تعداد پین |
3 |
پکیج |
MODULE |
ولتاژ کاری |
±15V |
جریان کاری |
600A |
IPN |
600A |
IP |
±90A |
VOUT |
±4V |
VC |
±12-15V |
IC |
±15mA |
TR-tr |
T<3µs |
TA |
80+~10- |
TS |
80+~25- |
ابعاد |
40x30x20mm |
دمای کاری |
80+~25- |
برند |
LEM |
کشور سازنده |
سوئیس |
کیفیت |
اریجینال |
نوع مونتاژ |
DIP |
ویژگی خاص |
- |
Features
· Hall effect measuring principle
· Galvanic isolation between primary
and secondary circuit
· Isolation voltage 3000 V~
· Low power consumption
· Extended measuring range (3 x IPN)
· Insulated plastic case made of
polycarbonate PBT recognized
according to UL 94-V0
Advantages
· Easy mounting
· Small size and space saving
· Only one design for wide current
ratings range
· High immunity to external
interference.
Applications
· AC variable speed drives
· Static converters for DC motor drives
· Battery supplied applications
· Uninterruptible Power Supplies
(UPS)
· Switched Mode Power Supplies
(SMPS)
· Power supplies for welding
applications..
50 ± 150 HAS 50-S
100 ± 300 HAS 100-S
200 ± 600 HAS 200-S
300 ± 900 HAS 300-S
400 ± 900 HAS 400-S
500 ± 900 HAS 500-S
600 ± 900 HAS 600-S
