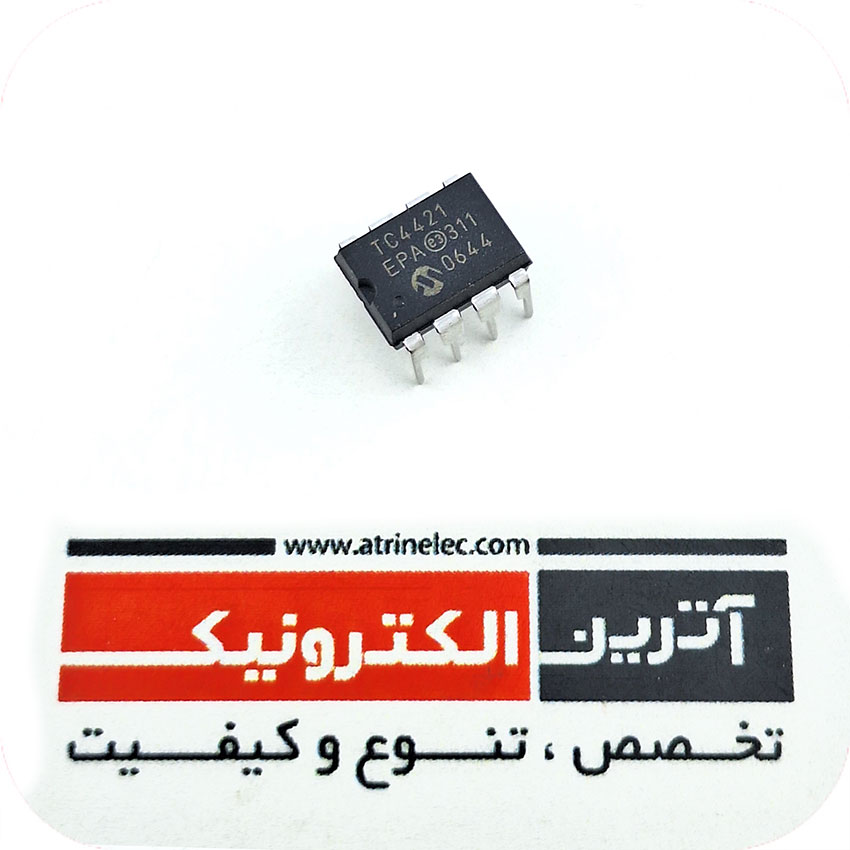

TC4421EPA اورجینال- واردات از DIGI-KEY اتریش

نقد و بررسی اجمالی

گیت درایور (ماسفت درایور) انواع اینورتر 9 آمپر 9A High-Speed MOSFET Drivers

Features:
• High Peak Output Current: 9A
• Wide Input Supply Voltage Operating Range:
- 4.5V to 18V
• High Continuous Output Current: 2A Maximum
• Fast Rise and Fall Times:
- 30 ns with 4,700 pF Load
- 180 ns with 47,000 pF Load
• Short Propagation Delays: 30 ns (Typical)
• Low Supply Current:
- With Logic ‘1’ Input – 200 μA (Typical)
- With Logic ‘0’ Input – 55 μA (Typical)
• Low Output Impedance: 1.4 (Typical)
• Latch-Up Protected: Will Withstand 1.5A Output
Reverse Current
• Input Will Withstand Negative Inputs up to 5V
• Pin-Compatible with the TC4420/TC4429
6A MOSFET Driver
• Space-saving 8-Pin 6x5 DFN-S Package
Applications:
• Line Drivers for Extra Heavily-Loaded Lines
• Pulse Generators
• Driving the Largest MOSFETs and IGBTs
• Local Power ON/OFF Switch
• Motor and Solenoid Driver
