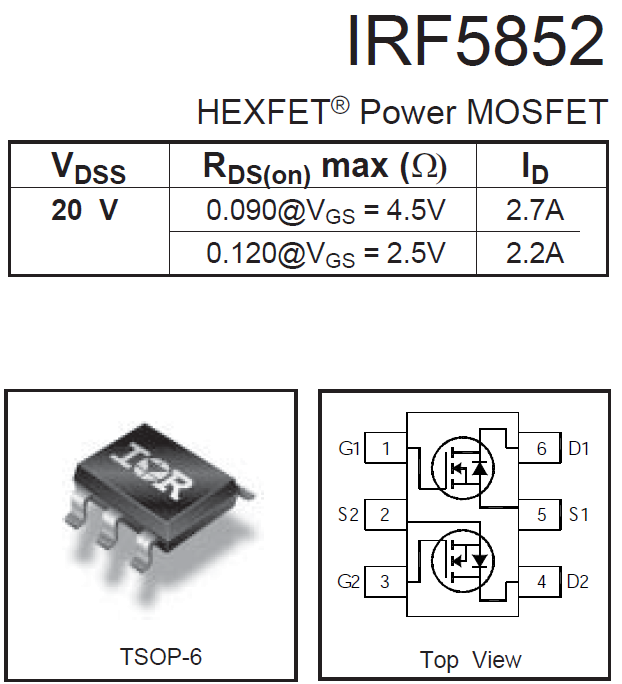

ماسفت دوبل 20 ولت 2.7 آمپر - HEXFET Power MOSFET DUEL MOSFET 2N-CH 20V 2.7A
Ultra Low On-Resistance
Dual N-Channel MOSFET
Surface Mount
Available in Tape & Reel
Low Gate Charge
Description
These N-channel MOSFETs from International Rectifier
utilize advanced processing techniques to achieve the
extremely low on-resistance per silicon area. This
benefit provides the designer with an extremely efficient
device for use in battery and load management
applications.
This Dual TSOP-6 package is ideal for applications
where printed circuit board space is at a premium and
where maximum functionality is required. With two
die per package, the IRF5852 can provide the
functionality of two SOT-23 packages in a smaller
footprint. Its unique thermal design and RDS(on)
reduction enables an increase in current-handling
capability.
