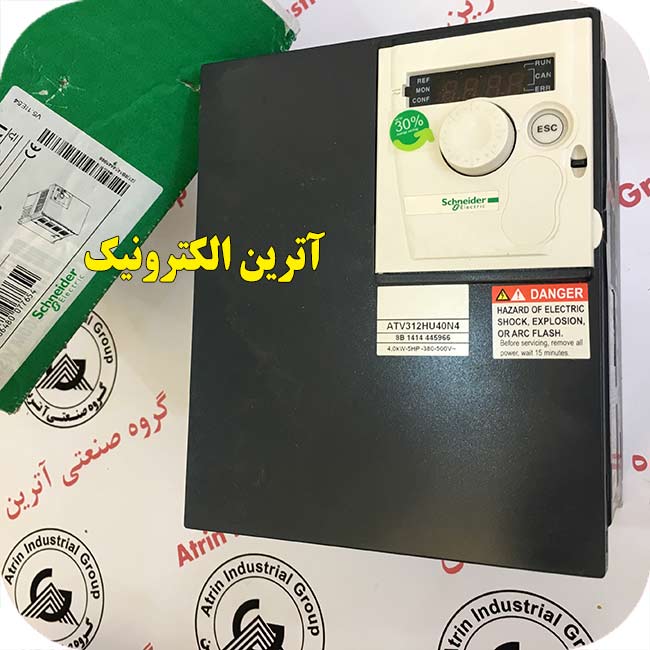

ATV312HU40N4 ساخت آلمان - مونتاژ اندونزی

ATV312HU40N4
اینورتر فرکانسی 4 کیلووات 5 اسب اشنایدر فیلتر EMC دار Schneider Electric ALTIVAR 312 Inverter Drive 4 kW-5HP with EMC Filter, 3-Phase In, 380 → 500 V, 13.9 A
توجه: حداقل تعداد خرید این محصول 1 عدد می باشد.

نقد و بررسی اجمالی

اینورتر فرکانسی 4 کیلووات 5 اسب اشنایدر فیلتر EMC دار Schneider Electric ALTIVAR 312 Inverter Drive 4 kW-5HP with EMC Filter, 3-Phase In, 380 → 500 V, 13.9 A



 دریافت دیتا شیت

اینورتر فرکانسی 4 کیلووات 5 اسب اشنایدر فیلتر EMC دار
Schneider Electric ALTIVAR 312 Inverter Drive 4 kW-5HP with EMC Filter, 3-Phase In, 380 → 500 V, 13.9 A



Product Details

Altivar ATV312 Series

The Altivar 312 drive is a frequency inverter for 200…600 V three-phase asynchronous motors from 0.18 to 15 kW. It is robust, compact and easy to install. Its integrated functions are particularly suitable for the requirements of applications involving simple industrial machines.,By taking account of constraints on product setup and use right from the design stage, the ATV312 is able to offer a reliable, cost-effective solution to manufacturers of simple machines and installers.

The Altivar 312 drive has six logic inputs, three analogue inputs, one logic/analogue output and two relay outputs.
The main functions available are as follows:

Motor and drive protection
Linear, S, U or customized acceleration and deceleration ramps
Local control of the speed reference using the navigation button
16 preset speeds
PI regulator and references
2-wire/3-wire control
Brake sequence
Automatic catching a spinning load with speed detection and automatic restart
Fault configuration and stop type configuration
Saving the configuration in the drive
Several functions can be assigned to one logic input

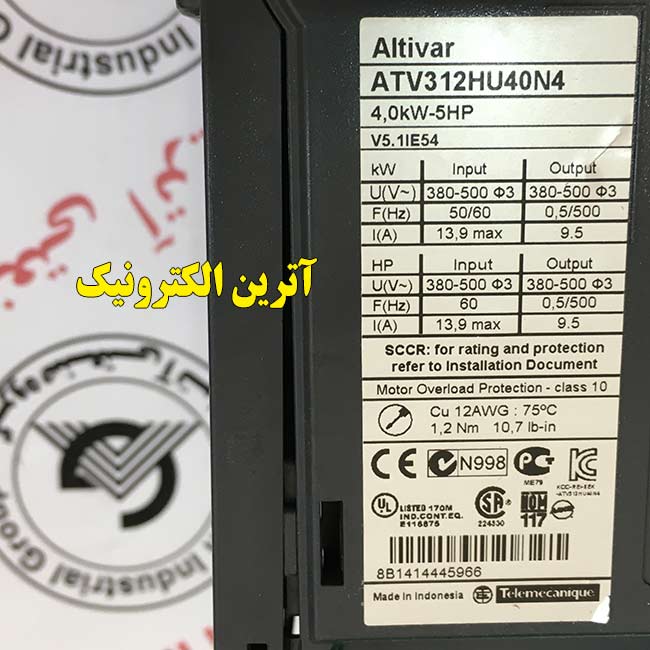

Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Power Rating 4 kW
Phase 3
Supply Voltage 380 → 500 V
Current Rating 13.9 A
IP Rating IP20, IP21, IP31, IP41
Output Frequency 0.5 → 500Hz
Control Panel Yes
Filter Included Yes
Field Bus Communication Type ModBus
Overall Length 184mm
Overall Width 140mm
Overall Depth 150mm
Ambient Temperature -10 → +50°C
Series ALTIVAR 312
CAD Drawing 3D CAD Model
