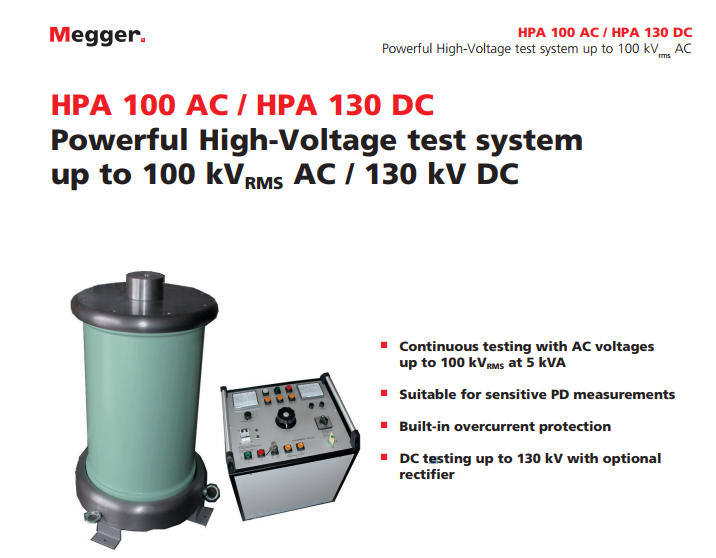

HPA 100 AC / HPA 130 DC Powerful High-Voltage test system up to 100 kVRMS AC / 130 kV DC
Powerful test and burning system
Continuous testing with AC voltages up to 100 kVrms at 5 kVA
Own noise-level below 1 %
Built-in overcurrent protection
DC testing up to 130 kV with optional rectifier

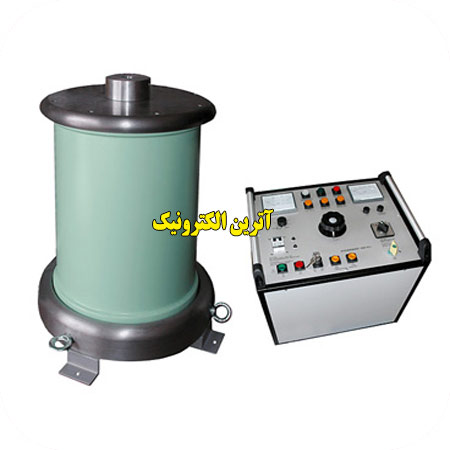

The AC Test Set HPA 100 is a powerful test set. The unit has been designed for mounting in cable test van and can be used for testing of cable systems and for burning down high-resistance cable faults with a high breakdown voltage. The test set can be equipped with a rectifier attachment for DC testing up to 130 kV. Since the own noise-level of the test system is below 1 pC, it is also suitable as a voltage source for PD-measurements.
