High-Speed CAN Transceiver جهت ارسال دیتا سریال طبق پروتکل CAN
دریافت کتابخانه( ALITUM DESIGNER )

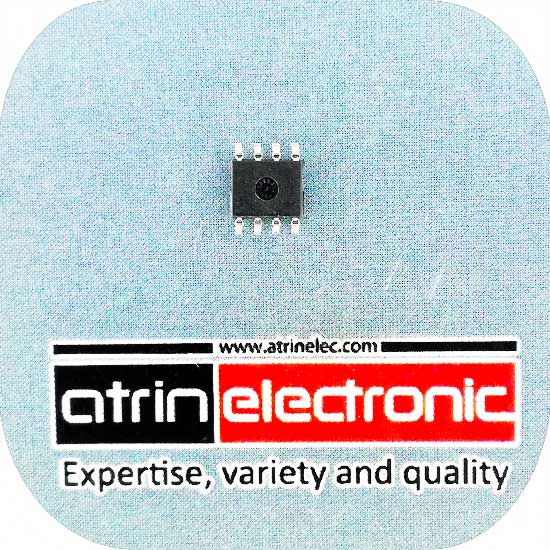

The MCP2551 is a high-speed CAN, fault-tolerant device that serves as the interface between a CAN
protocol controller and the physical bus.
The MCP2551 device provides differential transmit and receive capability for the CAN protocol controller, and
is fully compatible with the ISO-11898 standard, including 24V requirements.
It will operate at speeds of up to 1 Mb/s.
یکی از پروتکل های مهم صنعتی جهت ارتباط سریال پروتکل CAN می باشد که با دیتا ها با ولتاژ 24 ولتو تا سرعت 1مگ میتواند ارسال و دریافت کند.
در این ای سی میتوان تا 112 نود بر روی خط باس قرار داد.
ولتاژ کاری ای سی از 4.5 تا 5.5 ولت می باشد.
Features
• Supports 1 Mb/s operation
• Implements ISO-11898 standard physical layer
requirements
• Suitable for 12V and 24V systems
• Externally-controlled slope for reduced RFI
emissions
• Detection of ground fault (permanent Dominant)
on TXD input
• Power-on Reset and voltage brown-out protection
• An unpowered node or brown-out event will not
disturb the CAN bus
• Low current standby operation
• Protection against damage due to short-circuit
conditions (positive or negative battery voltage)
• Protection against high-voltage transients
• Automatic thermal shutdown protection
• Up to 112 nodes can be connected
• High-noise immunity due to differential bus
implementation
• Temperature ranges:
- Industrial (I): -40°C to +85°C
- Extended (E): -40°C to +125°C
