IC DRIVER BRIDGE 3-PHASEDIP-28 درایور سه فاز 600 ولت 3 طبقه بالا و 3 طبقه پایین ton/off (typ.) 1.3 &0.6 MICROs
IC DRIVER BRIDGE 3-PHASEDIP-28
درایور سه فاز 600 ولت 3 طبقه بالا و 3 طبقه پایین
ton/off (typ.) 1.3 &0.6 MICROs دریافت دیتا شیت
دریافت کتابخانه( ALITUM DESIGNER )
استفاده در انواع صنایع از جمله بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....
مشخصات بیشتر:

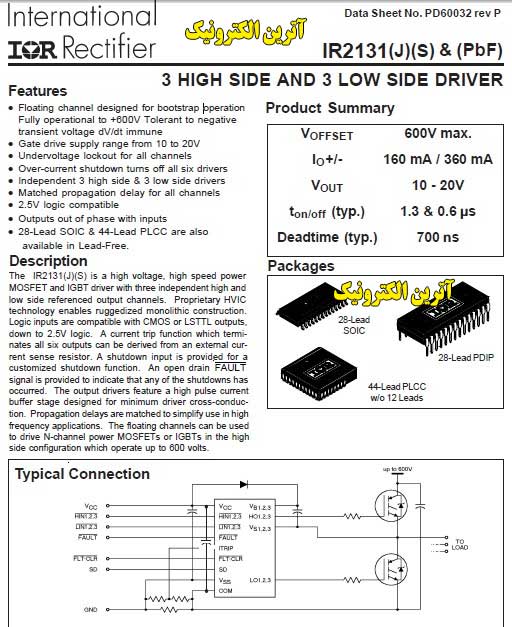

Features
• Floating channel designed for bootstrap operation
Fully operational to +600V Tolerant to negative
transient voltage dV/dt immune
• Gate drive supply range from 10 to 20V
• Undervoltage lockout for all channels
• Over-current shutdown turns off all six drivers
• Independent 3 high side & 3 low side drivers
• Matched propagation delay for all channels
• 2.5V logic compatible
• Outputs out of phase with inputs
• 28-Lead SOIC & 44-Lead PLCC are also
available in Lead-Free.
