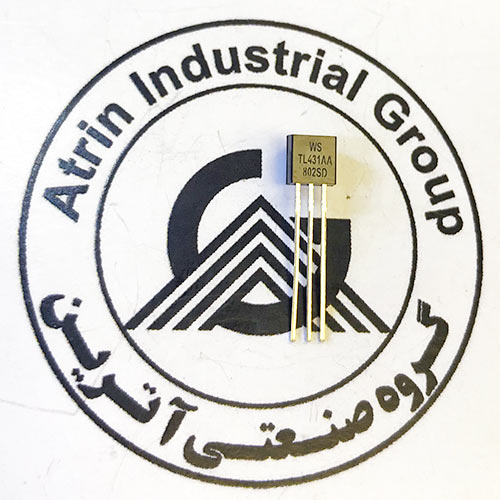

TL431A اوریجینال

نقد و بررسی اجمالی

ولتاژ رگلاتور قابل تنظیم 100 میلی آمپر Texas Instruments Voltage References Adjustable Precision Shunt Regulator TO-92

 دریافت دیتا شیت

ایسی رگلاتور

استفاده در انواع صنایع از جمله جوش و برش و اینورتر

اطلاعات بیشتر :

he TL431 is three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100mA. The output voltage may be set to any chosen voltage between 2.5 and 36 volts by selection of two external divider resistors. The devices can be used as a replacement for zener diodes in many applications requiring an improvement in zener performance. Diodes’ TL431 has the same electrical specifications as the industry standard ‘431 and is available in 2 grades with initial tolerances of 1% and 0.5% for the A and B grades respectively.

Application

• Opto-Coupler Linearisation
• Secondary side regulation
• Shunt Regulators
• Improved Zener
• Variable Reference

  Features

• Temperature range -40 to 125°C
• Reference Voltage Tolerance at 25°C
• TL431A: 2.495V ± 1.0%.
• TL431B: 2.495V ± 0.5%
• Low Output Noise
• 0.2Ω Typical Output Impedance
• Sink Current Capability: 1mA to 100mA
• Adjustable Output Voltage: V_REF to 36V
• SOT23 and SOT25: Available in “Green” Molding Compound (No Br, Sb) and Lead Free Finish/ RoHS Compliant
