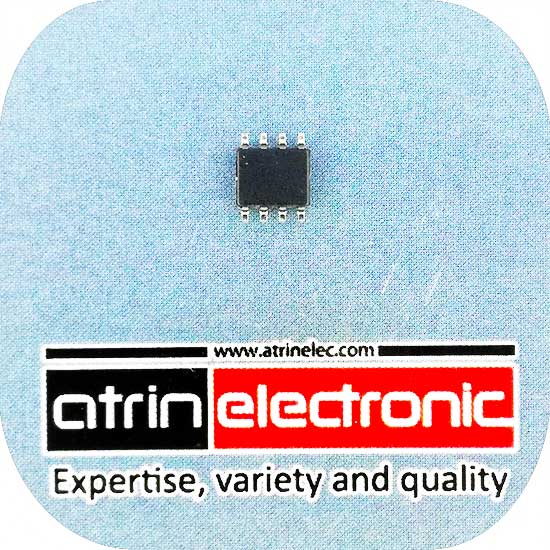

جهت ارسال دیتا سریال طبق پروتکل CAN اس ام دی High-Speed CAN Transceiver

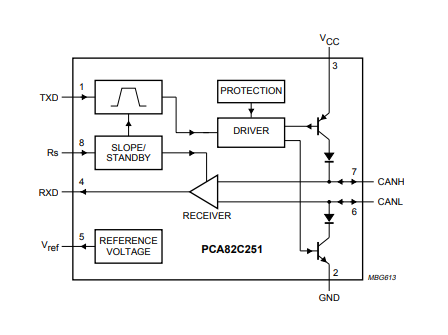

The PCA82C251 is the interface between the CAN
protocol controller and the physical bus. It is primarily
intended for applications (up to 1 Mbaud) in trucks and
buses. The device provides differential transmit capability
to the bus and differential receive capability to the CAN
controller
یکی از پروتکل های مهم صنعتی جهت ارتباط سریال پروتکل CAN می باشد که با دیتا ها با ولتاژ 24 ولتو تا سرعت 1مگ میتواند ارسال و دریافت کند.
در این ای سی میتوان تا 110 نود بر روی خط باس قرار داد.
ولتاژ کاری ای سی از 4.5 تا 5.5 ولت می باشد.
FEATURES
Fully compatible with the “ISO 11898-24 V” standard
Slope control to reduce RFI
Thermally protected
Short-circuit proof to battery and ground in 24 V powered systems
Low-current standby mode
An unpowered node does not disturb the bus lines
At least 110 nodes can be connected
(High speed (up to 1 Mbaud
High immunity against electromagnetic interference
