نقد و بررسی اجمالی

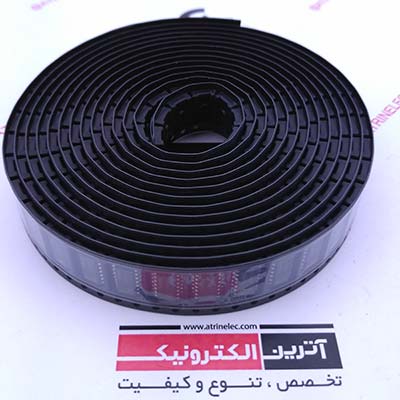

Hex Inverter with Schmitt-Trigger Input,SOP-14
آیسیاینورتر اشمیت تریگر SOIC-14
دریافت دیتا شیت
استفاده در انواع صنایع از جمله بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....
The MC14584B Hex Schmitt Trigger is constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The MC14584B may be used in place of the MC14069UB hex inverter for enhanced noise immunity to "square up" slowly changing waveforms.
Features |
|
|
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
|
- Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load over the Rated Temperature Range
|
- Double Diode Protection on All Inputs
|
- Can Be Used to Replace MC14069UB
|
- For Greater Hysteresis, Use MC14106B which is Pin-for-Pin Replacement for CD40106B and MM74Cl4
|
- Pb-Free Packages are Available*
|
