14066BG/MC14066B اریجینال

نقد و بررسی اجمالی

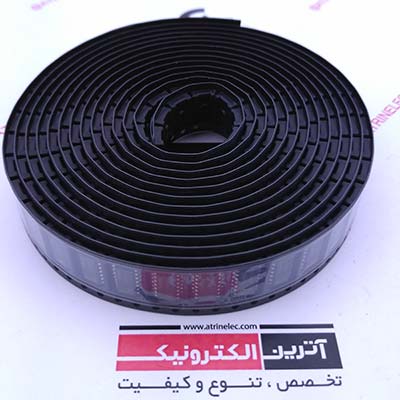

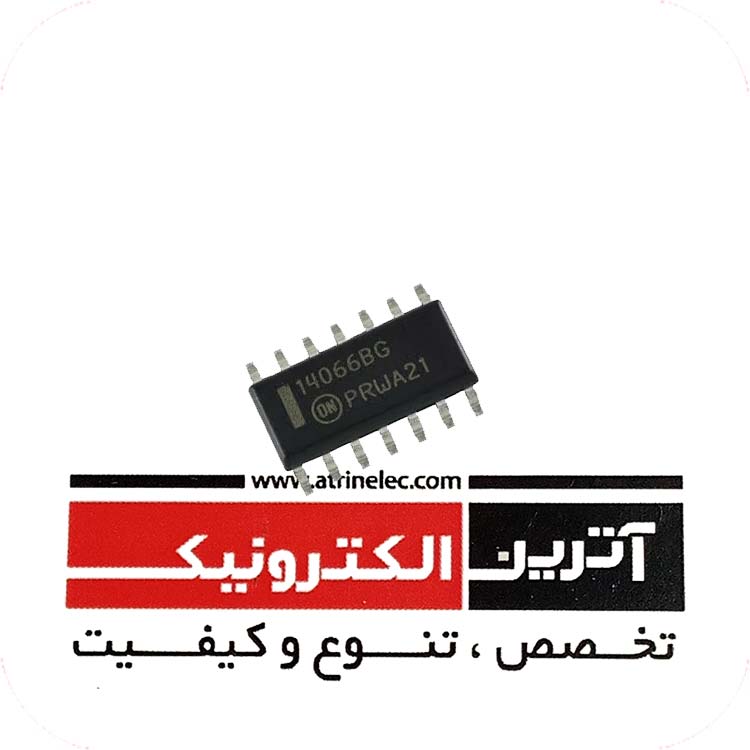

Quad Analog Switch/Quad Multiplexer,SOP-14 آیسی آنالوگ 4 مولتی فلکس SOIC-14

 دریافت دیتا شیت

استفاده در انواع صنایع از جمله  بردهای درایو دستگاه های جوش و برش و اینورتری
مخابراتی
مدارات عمومی
درایورهای دور موتور و .....

The MC14066B consists of four independent switches capable of
controlling either digital or analog signals. This quad bilateral switch
is useful in signal gating, chopper, modulator, demodulator and
CMOS logic implementation.
The MC14066B is designed to be pin−for−pin compatible with the
MC14016B, but has much lower ON resistance. Input voltage swings
as large as the full supply voltage can be controlled via each
independent control input.
Features
• Triple Diode Protection on All Control Inputs
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Linearized Transfer Characteristics
• Low Noise − 12 nV/√Cycle, f ≥ 1.0 kHz typical
• Pin−for−Pin Replacement for CD4016, CD4016, MC14016B
• For Lower RON, Use The HC4066 High−Speed CMOS Device
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
