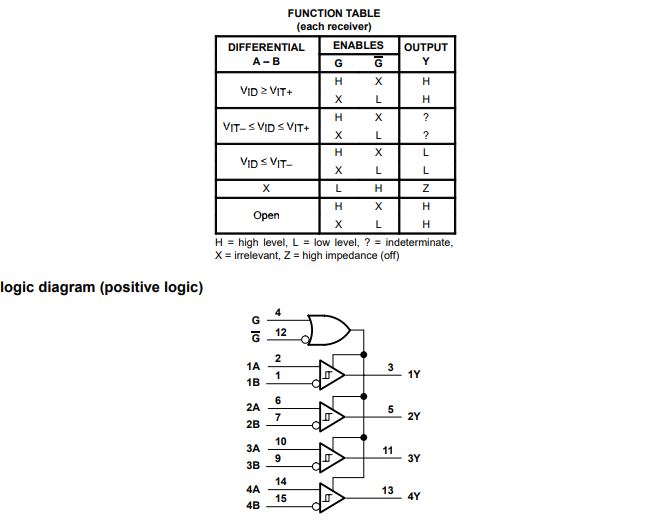

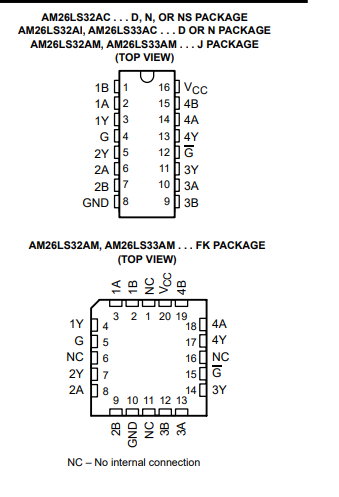

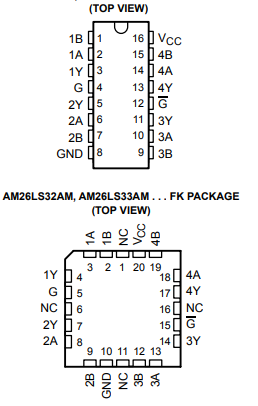

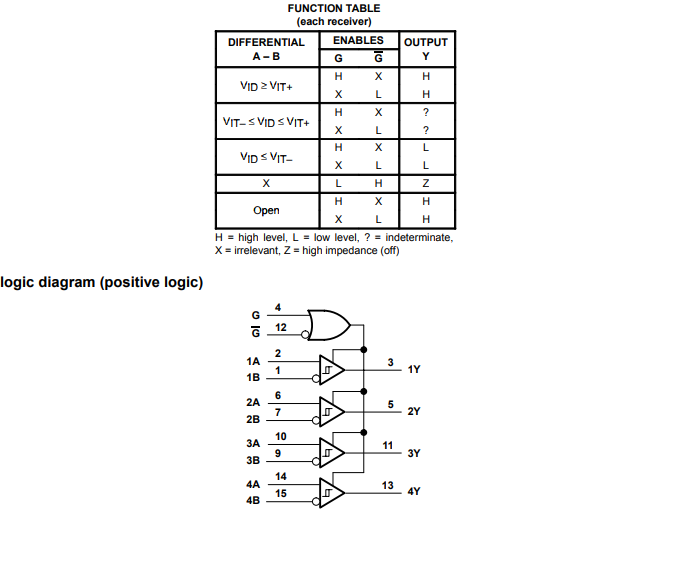

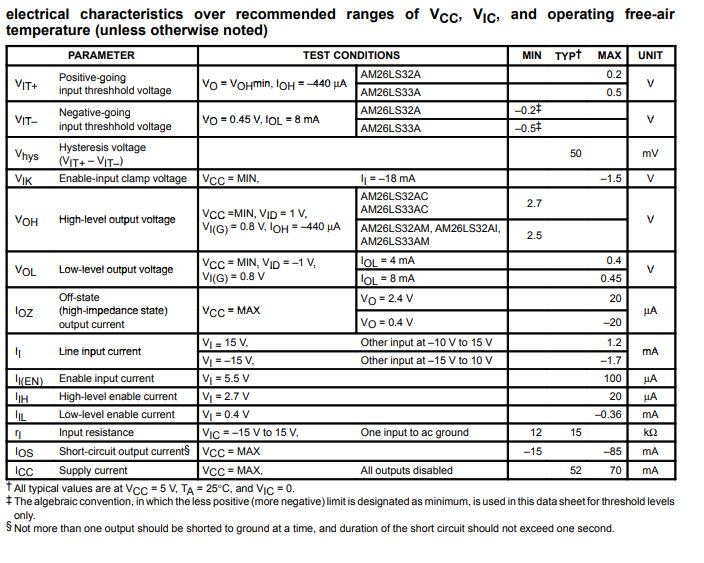

ای سی گیرنده پروتکل RS422 - استفاده در گیرنده-دیپ QUADRUPLE DIFFERENTIAL LINE DRIVER cription The AM26LS32A and AM26LS33A devices are quadruple differential line receivers for balanced and unbalanced digital data tra
AM26LS32A Devices Meet or Exceed the Requirements of ANSI TIA/EIA-422-B,TIA/EIA-423-B, and ITU Recommendations V.10 and V.11
AM26LS32A Devices Have ±7-V Common-Mode Range With ±200-Mv Sensitivity
Input Hysteresis . . . 50 mV Typical
Operate From a Single 5-V Supply
Low-Power Schottky Circuitry
3-State Outputs
Complementary Output-Enable Inputs
Input Impedance . . . 12 kÙ Min
Designed to Be Interchangeable With Advanced Micro Devices AM26LS32
