ای سی تقویت کننده،اپ امپ چهار تایی با پهنای باند 1 مگاهرتز و ولتاژ کاری 18V± ولت Quad Operational Amplifiers
Features
Input common mode voltage range includes ground or negative supply
Output voltage can swing to ground or negative supply

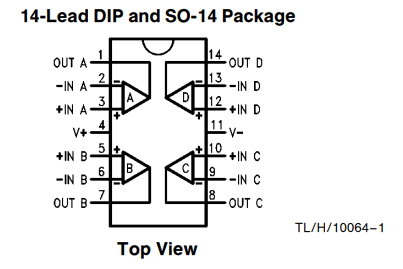

Four internally compensated operational amplifiers in a single package
Wide power supply range single supply of 3.0V to 36V dual supply of g1.5V to g18V
Class AB output stage for minimal crossover distortion
Short circuit protected outputs
High open loop gain 200k
LM741 operational amplifier type performance
Applications
Filters
Voltage controlled oscillators
