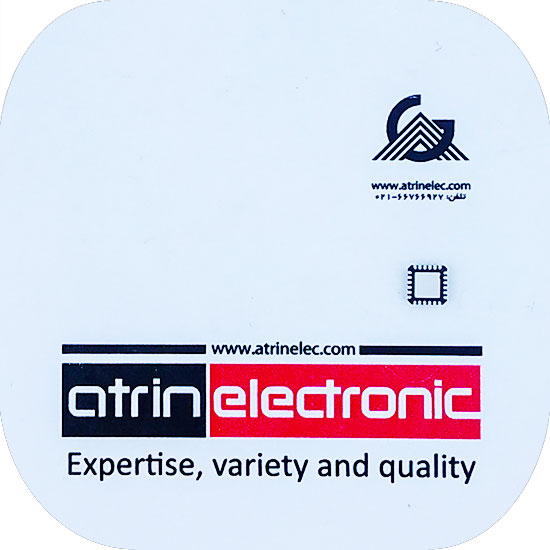

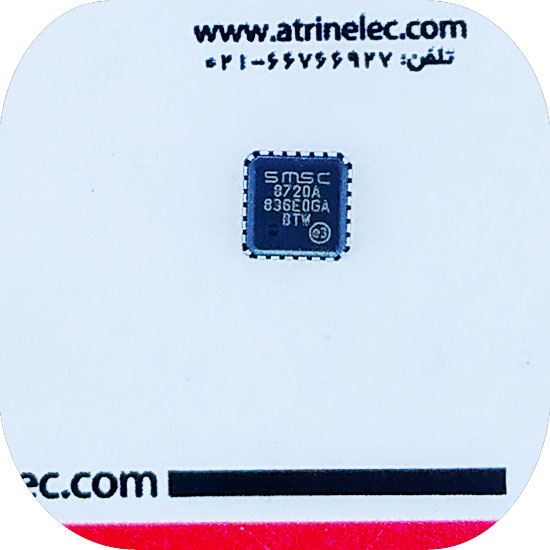

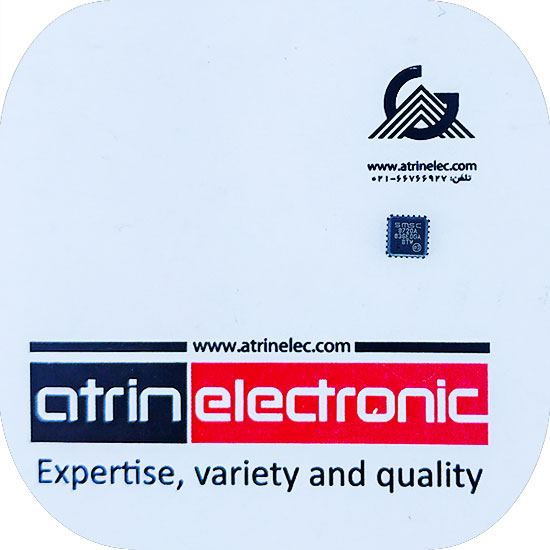

ای سی لایه فیزیکی اترنت با رابط MII مناسب برای میکروکنترلر آرم که HP Auto-MDIX پشتیبانی میکند. Small Footprint RMII 10/100 Ethernet Transceiver with HP Auto-MDIX Support
Highlights
(Single-Chip Ethernet Physical Layer Transceiver (PHY
Comprehensive flexPWR® Technology
Flexible Power Management Architecture
LVCMOS Variable I/O voltage range: +1.6V to +3.6V
Integrated 1.2V regulator
HP Auto-MDIX support
(Miniature 24-pin QFN lead-free RoHS compliant package (4 x 4 x 0.85mm height
Target Applications
Set-Top Boxes
Networked Printers and Servers
Test Instrumentation
LAN on Motherboard
Embedded Telecom Applications
Video Record/Playback Systems
Cable Modems/Routers
DSL Modems/Routers
Digital Video Recorders
IP and Video Phones
Wireless Access Points
Digital Televisions
Digital Media Adaptors/Servers
Gaming Consoles
(POE Applications (Refer to SMSC Application Note 17.18
