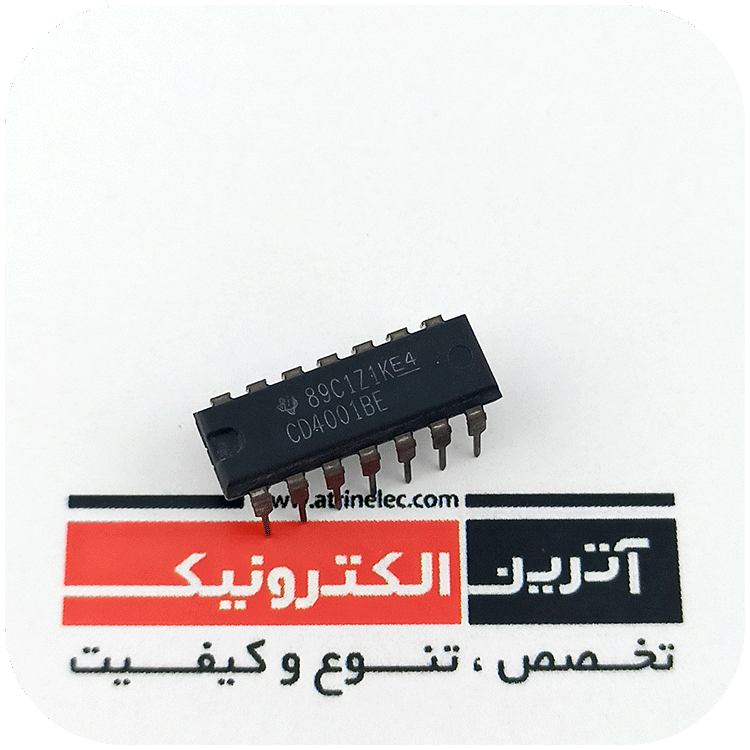

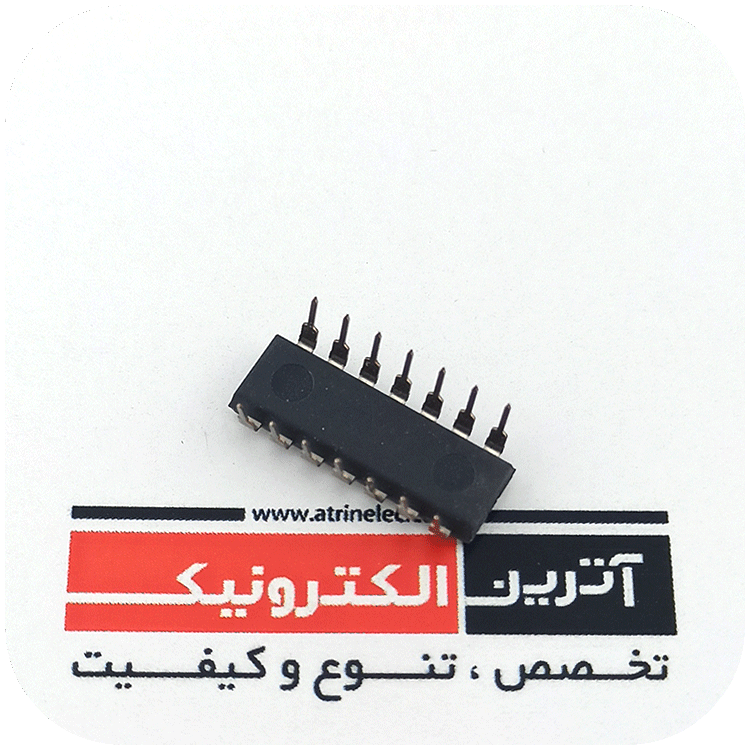

CD4001BE اورجینال

نقد و بررسی اجمالی

ای سی 4 گیت نور دو ورودی Quad 2-Input NOR Buffered B Series Gate

 دریافت دیتا شیت

General Description

The CD4001BC quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS

Features

 Low power TTL: Fan out of 2 driving 74L compatibility: or 1 driving 74LS

 5V–10V–15V parametric ratings

 Symmetrical output characteristics

 Maximum input leakage 1 µA at 15V over full temperature range
