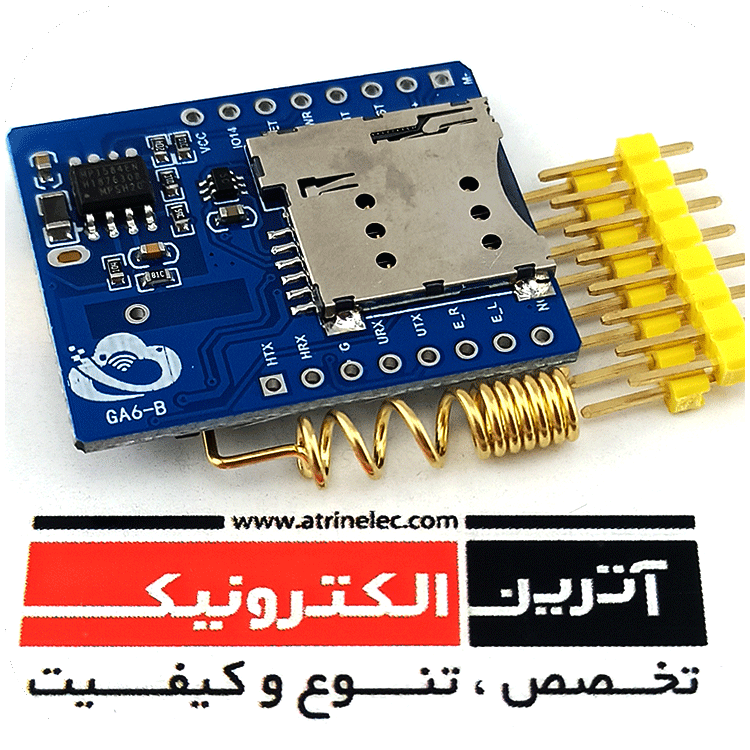

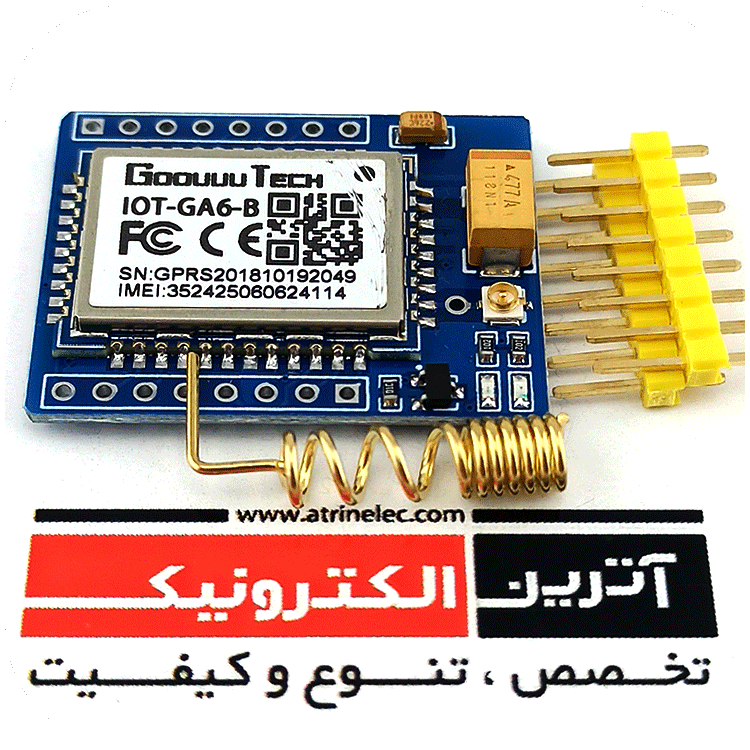

ماژول GPRS / GSM چهار باند A6 دارای ارتباط سریال - پشتیبانی از AT Command
led Working temperature -30 ° to + 80
Operating Voltage 5V
Standby average current 3ma less
support the GSM / GPRS four bands, including 850,900,1800,1900MHZ
GPRS Class 10
Sensitivity <-105
support voice calls
support SMS text messaging
Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps
Supports standard GSM07.07,07.05 AT commands and extended commands Ai Thinker
supports two serial ports, a serial port to download an AT command port
AT command supports the standard AT and TCP / IP command interface
support digital audio and analog audio support for HR, FR, EFR, AMR speech coding
support ROHS, FCC, CE, CTA certification
