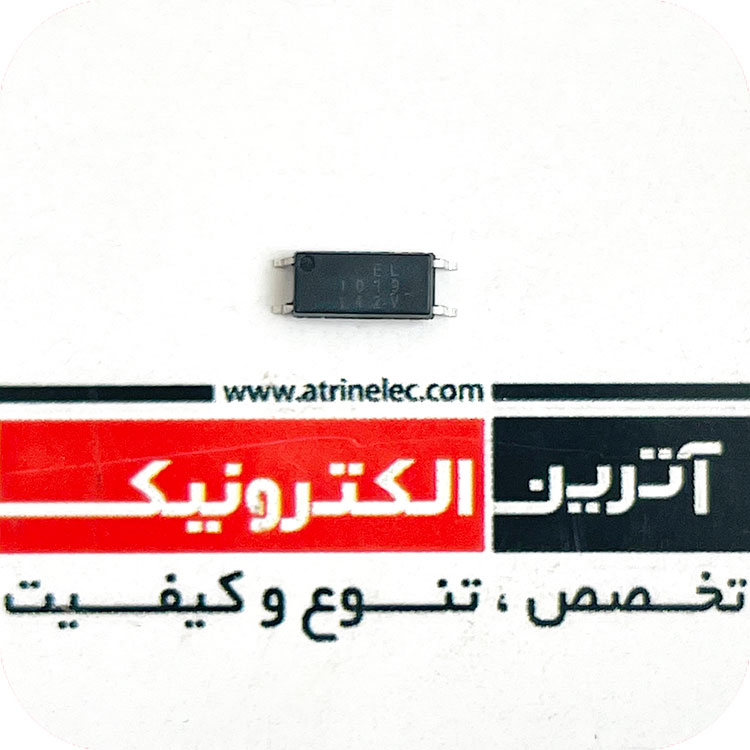

اپتوکوپلر 4 پین 50 میلی آمپری - 4PIN LONG CREEPAGE SOP PHOTOTRANSISTOR PHOTOCOUPLER
استفاده در انواع صنایع از جمله :
کنترلرهای برنامه پذیر-سیستم های اندازه گیری-ماینر ها-سوئیچینگ ها -تجهیزات خانگی-مخابراتی
Features:
• Free halogens compliant
• Current transfer ratio
(CTR: 50~600% at IF =5mA, VCE =5V)
(CTR: 63~320% at IF =10mA, VCE =5V)
• High isolation voltage between input
and output (Viso=5000 V rms )
• Compact 4 Pin SOP with a 2.0 mm profile
• 8mm long creepage distance
• Pb free and RoHS compliant.
• UL approved (No. E214129)
• VDE approved (No. 40028391)
• SEMKO approved
• NEMKO approved
• DEMKO approved
• FIMKO approved
Description
The EL101X-G series devices consist of an infrared emitting
diode, optically coupled to a phototransistor detector. Compound
use free halogens and Sb2O3.
They are packaged in a 4-pin SOP package
Applications
Programmable controllers
System appliances, measuring instruments
Telecommunication equipments
Home appliances, such as fan heaters, etc.
Signal transmission between circuits of different potentials and impedances
مشخصات:
مشخصات - پارامترها |
مقادیر |
خانواده |
المان قطع ووصل جریان وولتاژالمان محافظت |
سری |
اپتوکوپلرOPTOCOUPLER |
تعداد پین |
4 |
پکیج |
SOP-4 |
VR |
6V |
IF |
50mA |
ITSM |
- |
VDRM |
- |
VCEO |
80V |
VISO |
- |
Ptot-PD |
250mW |
تعداد خروجی |
1 |
ابعاد |
7.62X4.68X3.5mm |
دمای کاری |
125+~50- |
برند |
EVERLIGHT |
کشور سازنده |
تایوان |
کیفیت |
اورجینال |
نوع مونتاژ | SMD |
ویژگی خاص |
- |
EL101X-G Series
