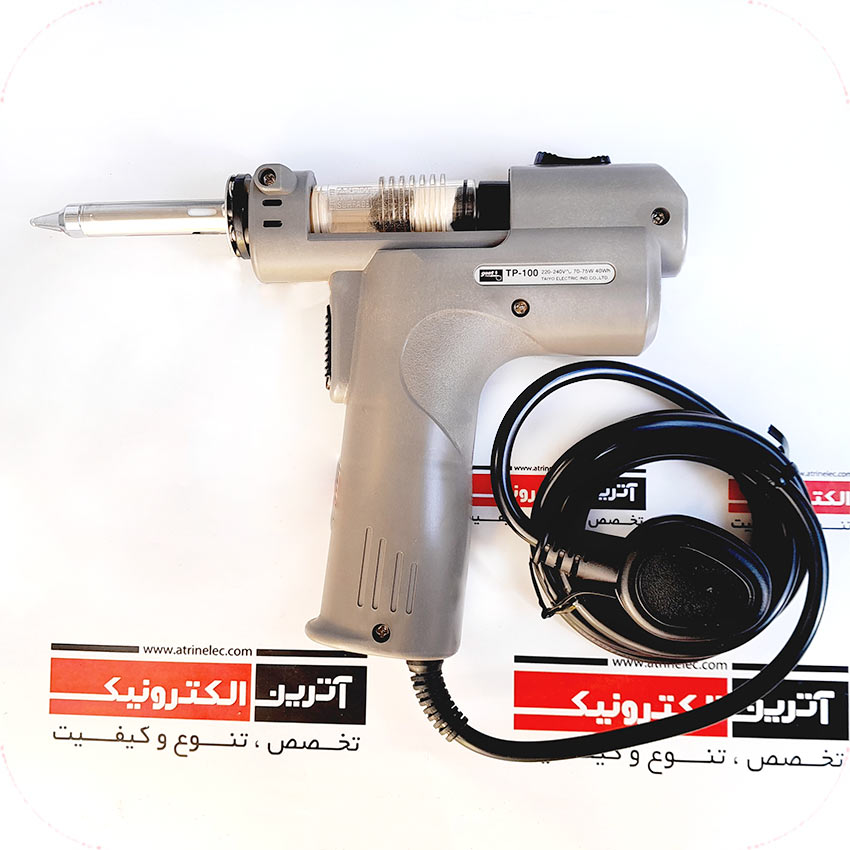

قلع کش اتوماتیک گوت TP-100 اورجینال 75 وات - تنظیم دما بین 250 تا 450 درجه-قدرت مکش 0.08MPa - PORTABLE DESOLDERING GUN TP-100
بسیار با کیفیت - ساخت ژاپن MADE IN JAPAN
TAIYO ELECTRIC IND. CO., LTD
صنعتی و با دوام
پمپ روان و ضربه معکوس(لگد) بسیار کم
Handy, portable Desoldering Gun with combined temperature-control circuit and desoldering mechanism
------
ویژگی ها:
| MODEL | TP-100 | TP-100AS |
| Voltage | 110–130V, 220–240V AC 50/60Hz | |
| Power Consumption | 80W (110-130V), 70–75W (220-240V) | |
| Power Cord Length | 1.5m | |
| Temperature Setting Range | 250–450˚C | |
| Insulation Resistance | Over 100MΩ(500V DC) | |
| Vacuum Pump System | Diaphragm system | |
| Vacuum | – 0.08MPa (-600mmHg) | |
| Heater | Ceramic Heater | |

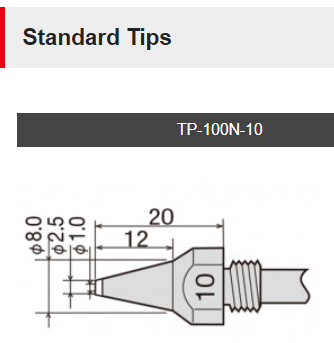

| Standard Nozzle | TP-100N-10 | |
| Accessories | Cleaning pin TP-100CP-07/ Filter TP-100F | |

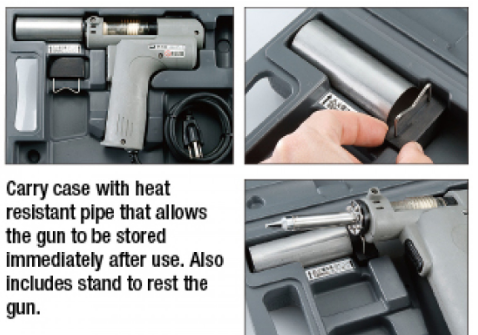

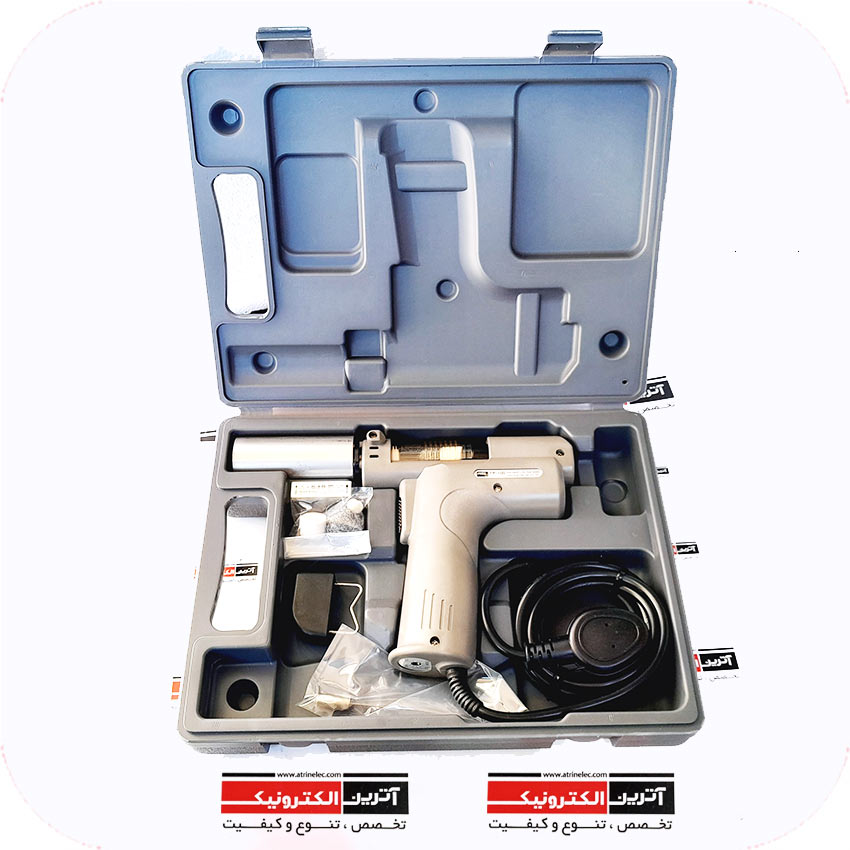

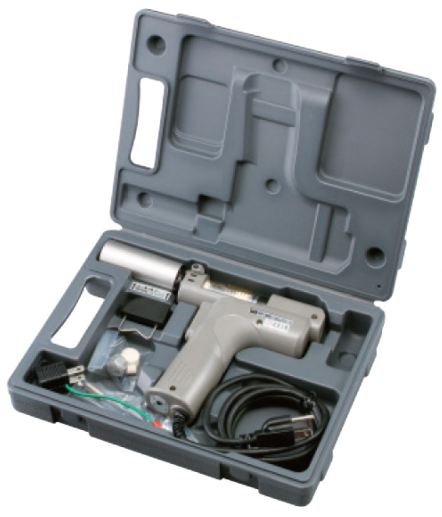

| Carry case | ||
| Heat resistant pipe /Stand | ||
| Dimensions | 225×170 mm | |
| Weight | 470g (w/o cord) | |
Everything from through-holes to multi-layered PCBs [Powerful Vacuum] Good for a wide range of soldering work, for terminals, connectors and flat ICs [Ceramic Heater with Internal Sensor (soldering & desoldering)] Reduces noise during heater ON/OFF [Zero Volt Switch Circuit] Makes changing the filter easy [Replaceable Cartridge Filter]
Maximum vacuum of –0.08Mpa (-600mmHg). Removes through-hole solder easily.
