600V IGBT Modules 10A SPM45 FAST VERSION WITHOUT NTC FUNCTION ماژول 600 ولت 10 آمپر شش تایی

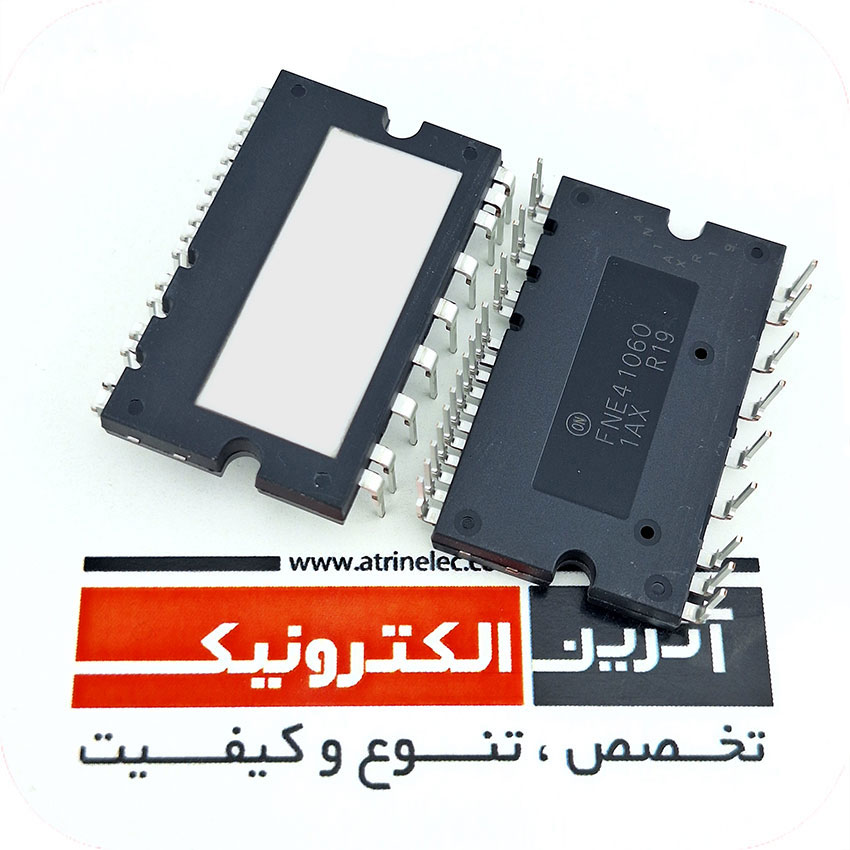

FNE41060
Smart Power Module
Features

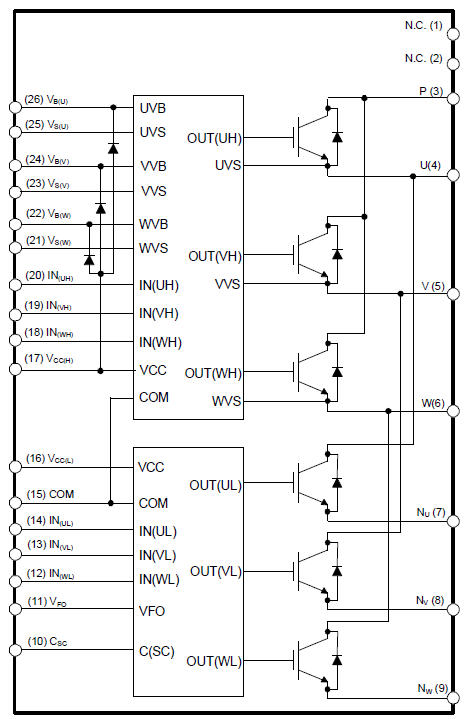

• 600V-10A 3-phase IGBT inverter bridge including control ICs
for gate driving and protection
• Easy PCB layout due to built-in bootstrap diode and VS output
• Divided negative dc-link terminals for inverter current sensing
applications
• Single-grounded power supply due to built-in HVIC
• Built-in thermistor for over-temperature monitoring
• Isolation rating of 2000Vrms/min.
Applications
• AC 100V ~ 253V three-phase inverter drive for small power
ac motor drives
• Home appliances applications like air conditioner and washing
machine
