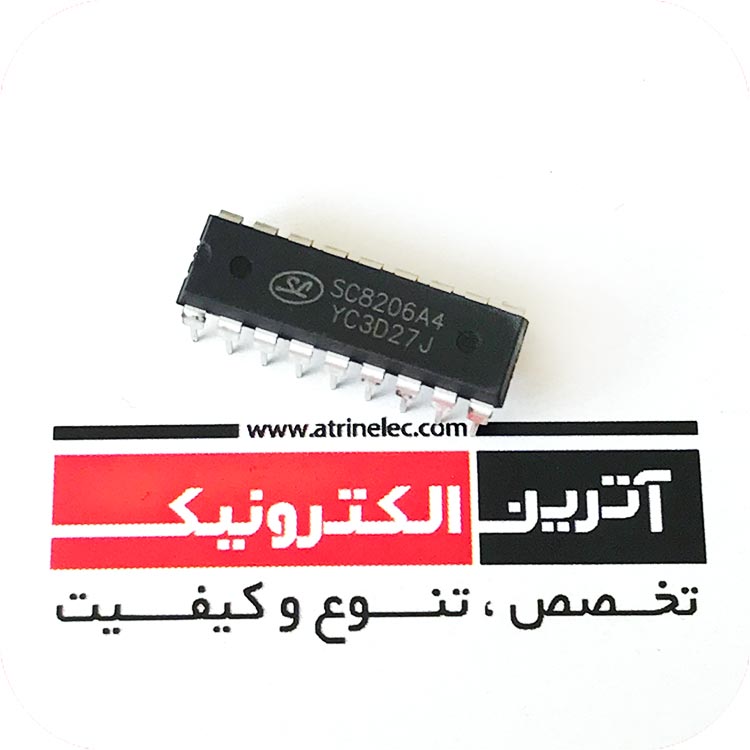

ایسی PWM کنترل فن سیلان دیپ18 REMOTE FAN CONTROL IC DIP-18
استفاده در کنترل دور فن
تصویه هوا
هیتر ها
و رطوبت ساز ها
SC8206
REMOTE FAN CONTROL IC
SC8206 is a high performance electronic fan controller LSI,
Speed control, off-timer, nature wind, sleep mode are all built into a
single chip. Light control, buzzer output, key control input, as well as
remote control decoding circuitry are all provided to build a full
function electronic fan with remote control capability having the
highest performance with the least external components. Pin
assignment and application circuit are optimized for easy PCB layout
and cost saving for electronic fan application.

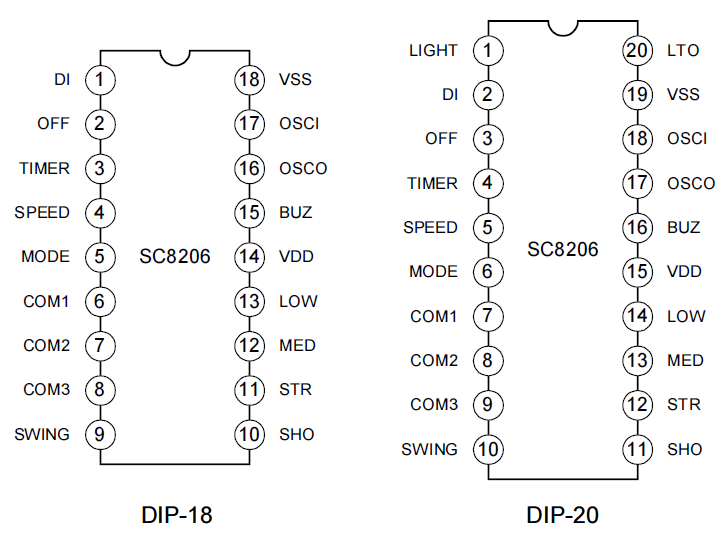

SC8206 adopted DIP-18 or DIP-20 package
FEATURES
High performance CMOS Technology
Low power consumption
Three operation modes: ordinary, nature and rhythm sleep.
Three speed modes: strong, middle and low
Memory start-up mode
Middle wind start-up
Buzzer indicator function operation.
Two bits consumer code
Built-in 455kHz oscillator circuit
APPLICATION
Fan remote controller
Air cleaner
Humidifier
Heater
SC8206N3 DIP-18 -- -- --
SC8206A4 DIP-18 -- -- --
SC8206A4K DIP-18 -- --
SC8206N3L DIP-20 -- --
SC8206A4L DIP-20 -- --
SC8206A4KL DIP-20 --
